DC Power Surge Protector

We offer Dc Power Surge Protector.
1. Product features
 Thermal disconnect device
 High current capacity, quick response
 Low residual voltage, free of leakage current
 Remote warning
 Easy installation with Din rail mounting
 Plug connectors for quick and easy connection or rewiring
2. Applications
 PV combiner box
 DC power system
 DC distribution box
 DC switchboard
 Electronic information system box
 Output of second Power equipment
3. Technical data

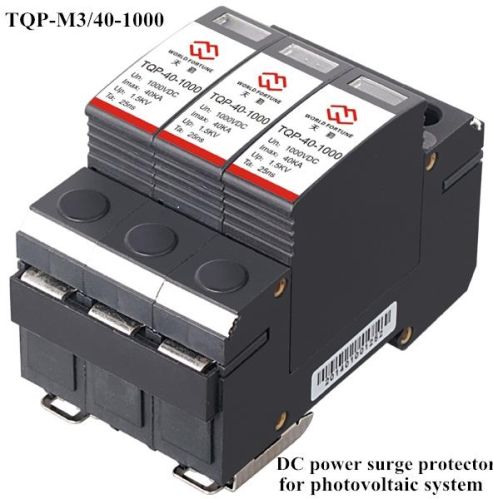

Model TQP-M3 40-1000
Nominal operating voltage Un 1000VDC
Maximum continuous operating voltage Uc 1200VDC
Nominal discharge current In (820μs) 20KA
Maximum discharge current Imax (820μs) 40KA
Protection level Up (820μs,20KA） ≤1.5KAV
Response time Ta ≤25ns
Protection modes 3: star type, 2:+- -PE
Dimension 90*54*65mm
Weight per unit 387g
Mounting type DIN rail : 35mm
Housing material Anti-flaming
Index of protection IP20
Operating environment Temperature:-40—+85℃ humidity: ≤95%
Remote control (optional) Normally closed, normally open or COM
Warranty Five-year warranty, three-year replacement
Related models TQP-M340-800, TQP-M240-500, TQP-M240-300
