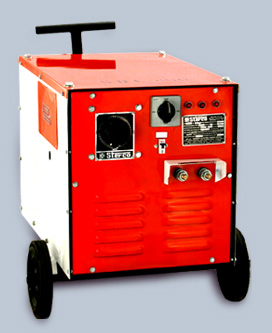

DC Welding Rectifier Model - SDC

Get Latest Price

MaterialHigh Grade Electrical Steel, Semiconductor Devices
Packaging TypeSolid Rubber Wheels For Mobility
PurityForced Air Cooled,Suitable For Various Metals,Low Maintenance And Initial Cost,Can Be Used For Plasma Arc Cutting And TIG Welding,Mounted On Rubber Wheels For Portability,Protected Against Surges,M.C.B For Current Controller Protection,On-Off Switch On Fr
Storage TypePortable With Wheels
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Tejindra Electric Works (Regd.)

Wazirpur, Delhi

4.5/5

(29)

View Number

Member Since 22 Years
Nature of Business Manufacturer
GST No. 07AALPS9861J1ZU

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialHigh Grade Electrical Steel, Semiconductor Devices
PurityForced Air Cooled,Suitable For Various Metals,Low Maintenance And Initial Cost,Can Be Used For Plasma Arc Cutting And TIG Welding,Mounted On Rubber Wheels For Portability,Protected Against Surges,M.C.B For Current Controller Protection,On-Off Switch On Fr
Packaging TypeSolid Rubber Wheels For Mobility
Storage TypePortable With Wheels
Number Of FlowerWelding Rectifier
Additional OptionsHigher Ratings Up To 1000 Amps, Multi-Operator Models
AdvantagesImproves Power Factor, Saves Energy,Stable Voltage, Low Primary Current Demand,Very Low Running And Maintenance Cost,Low Ripples In Output

STERCO D.C. Welding Rectifiers Forced Air Cooled are used as power Source for manual metal Arc Welding (MMAW) jobs with bare & coated electrodes suitable for ferrous and non ferrous metals. These welding rectifiers are also used as an alternative to DC welding generators and even have an edge over DC welding generator as there are no moving parts in welding rectifier except the cooling fan which ensures almost nil maintenance cost, besides its low initial cost as compared to generator. These rectifiers can also be used as power source for plasma Arc cutting gas shielded arc welding & for Tungston Electrode (TIG) welding to do the welding of stainless steel copper alloys. Submerged Arc Welding and also suitable for carbon Air Arc Gouging.

TRANSFORMER

Specially designed Transformer conforming to IS : 4559 1993 having core of high grade electrical steel Welding current is regulated by latest transconductor type control continuous current variations and 3 phase full waive bridge circuit used in current Rectifier for higher efficiency and steady form, Welding rectifiers are mounted on three solid rubber wheels (Front wheels swivelling & steerable type by means of draw bar) for easy portability, bye bolts had been provided to lift the machine.

PROTECTION PROVIDED

1.	Both main & control rectifier protected against surges by semi conductor devices for positive protections.
2.	M.C.B. is provided for protection of the current controller.
3.	On-Off switch is provided on the front panel.

OPTIONAL

Remote control with required cable length, voltmeter, Amp. meter and a set of welding accessories etc. can also be provided at an extra cost.

ADVANTAGES

Improves power factor and saves energy.

Does not create unbalanced voltage fluctuation on the other load connected simultaneously.

Lower demand of primary current for starting.

Very low running and maintenance cost.

Extremely low ripples in the output.

	Rectifiers of higher ratings up to 800 - 1000 amps. with higher O.C.V (Open Circuit Volt) can also be available.
	Multi - Operator welding rectifiers can also be available.

Note: We reserve the right to change the design and modify specifications at the discretion of our technical department.

Technical Specifications
Model		SDC - 2	SDC - 3	SDC - 4	SDC - 5	SDC - 6
Maximum Welding Current at 60% duty cycle	Amps.	200	300	400	500	600
Minimum Welding Current	Amps.	40	50	60	80	100
Open Circuit	Volts.	75	75	75	80	80
Welding Voltage	Volts.	21-28	22-32	23-36	23-40	24-44
Maximum Welding Current at 100% duty cycle	Amps.	150	220	300	375	450
KVA as per ISI	KVA	5.6	9.6	14.4	20	26.4
Maximum KVA	KVA	13	19.5	26	35	49
Cooling		Forced Air Cooled
Input supply		380/415/440 volts Balance load-3 phase, 3 lines, 50 Hz.
Maximum Electrode Size	MM	4	5	6.3	8	8
Minimum Electrode Size	MM	2.5	2.5	3.15	4	4
Insulation Class	F	F	F	F	F	F
Power Factor with Capacitor		0.8 at half load
Recommended Power Factor Capacitor	KVAR	4	6	8	10	12
Current Regulator			Stepless
