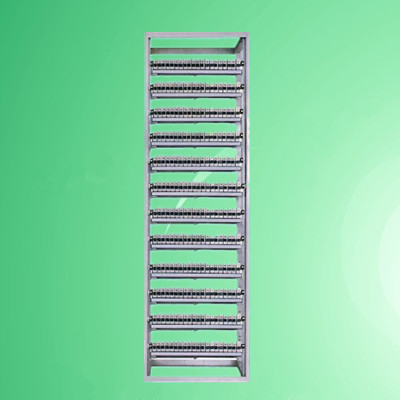

Ddf Digital Distribution Frame, Brand Name : OST

Get Latest Price

MOQ5 Set(s)
CertificationISO9001:2008
Brand NameOST
Work rate2Mb/s,8Mb/s,34Mb/s,140Mb/s,155Mb/s
Insulation resistance≥1000MΩ（500VDC）
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Wuxi Orient Rising Sun Telecom System Equipment Co., Ltd

China

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1999

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

CertificationISO9001:2008
Brand NameOST
The relative temperature≤85%（+30℃）
The contact resistance of coaxial connectorThe outer conductor ≤ 2.5m ≤ 10m Ω, the inner conductor
Insulation resistance≥1000MΩ（500VDC）
The pull-off force＞50N
Atmospheric pressure70KPa～106KPa
Dielectric strength≥1000VAC（50Hz）/min(No breakdown, no arc)
Loop between crosstalk ratio≥70dB（50KHz～210MHz）
Work rate2Mb/s,8Mb/s,34Mb/s,140Mb/s,155Mb/s
Return loss≥18dB（50KHz～210MHz）
Working temperature-5℃～+40℃
Insertion loss≤0.3dB(50KHz～210MHz)
Characteristic impedance75Ω(Imbalance)

Details:
1. Easy maintenance.
2. High capacity.
3. Reduce initial set up cost.
Features:
1.Steel frame, scientific design, convenient operation, equipped with a coil of wire and a jumper;
2.Coaxial connection device for terminal box, shield and the exchange of good performance, shield the electrostatic epoxy spray, beautiful appearance, strong anti-corrosion;
3.The terminal box terminal is divided into high and low terminal two, connected with the cable adopts a welding mode, the unit body can rotate 360 degrees, convenient welding cable.
