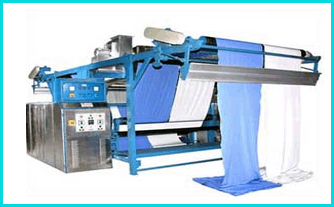

Decatising Machine

unique finish effects, controllable with optimum steaming, vacuuming and wrapper cloth pressure.

suitable for polyester/wollen, polyester/cotton or viscose blends, from light fabrics likes sarees/shirtings to as heavy as corduroy suitings.

gentle wrapper transport with a.c. Inverter drive for main cylinders and efficient drying system to achieve long wrapper life.

time saving due to simultaneous loading and unloading of fabric.

lower heat and energy consumptions

• cylinders: two main cylinders fabricated out of s.s. 316 stainless steel perforated plates mounted on ball bearings with specially designed gun metal nozzles for effective steaming and cooling operations driven by a.c. Electric motor.

• dryer cylinder: one stainless steel dryer cylinder provided at the bottom between the two main cylinders having proper heat controlling arrangement to dry the wrapper.

• pressure rolls: two hardchromed pressure rolls to press the fabric while feeding it to the main cylinders to ensure crease free entry of the fabric into the machine. Pneumatic cylinders are provided to adjust the pressure and tension of the fabric.

• vacuum pump: 5 h.p. Hydrovaccum system to save the power and water or 15 h.p. Water ring tye vaccumpump for colling the fabric.

• control panel: electrical control panel complete with synchronous timers, solenoid valves, pressure gauges, thermometers, push buttons, tele tell bulbs and other safety devices including auto/manual selection switches.

• plaiting down arrangement: plaiting down arrangement with geared motor on either side for piling the fabrics.

• drive : a.c inverter drive or hydraulic drive or chain drive will be provided
