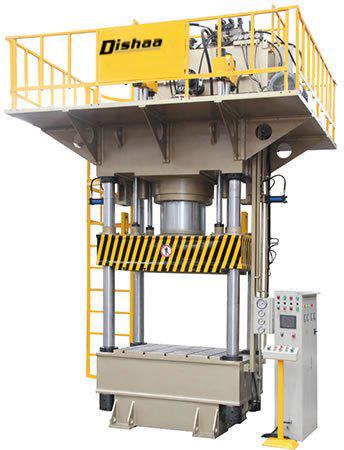

Four-Column Deep Drawing Hydraulic Press HBP-40T – 160T.

Characteristics

Four column structure enjoys outstanding rigidity. Each press is designed through finite element structural analysis and optimization to assure high strength and rigidity.
This sheet metal machinery adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan)
Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance.
The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
The four-column hydraulic press adopt Mitsubishi PLC + Touch screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic.
Designed with adjustable drawing speed, the four column deep drawing press is applicable for various thickness metalworking and deep drawing.
The hydraulic press fully meets CE safety requirements.
The slide has fast speed and high productive efficiency.

Applications

Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more.
Specially for the following industries:
a. Automobile industry: steel ring, vehicle body, chasis, axle housing, fuel tank, door and many more.
b. Household appliance industry: components of air conditioner, refrigerator, washing machine, microwave oven, electric cooker and so on.
c. Kitchen ware industry: stainless steel utensil, gas cylinder, stainless steel sink, cooking bench, etc.

Optional

Moving bolster / die change trolley
Stamping dampers for shock proof while stamping
Trolley / moving bolster for easy die change
Cushion device for anti-shock while stamping
Water cooler / oil chiller
Mould hydraulic clamping
Air breathing design as per request

Technical Specifications

Item(1)		Unit	HBP-60T	HBP-100T	HBP-120T	HBP-160T	HBP-200T	HBP-250T
Capacity		KN	400	600	800	1250	1600	2000
Return Force		KN	110	210	250	300	300	350
Slide Stroke		mm	400	450	510	680	710	710
Max. Daylight		mm	500	650	760	900	1050	1150
Cushion Capacity		KN	200	400	400	350	400	500
Cushion Stroke		mm	200	200	250	250	250	250
Down Speed		mm/s	150	160	200	220	140	180
Pressing Speed		mm/s	11~22	7~16	8~19	9~20	8~19	9~20
Return Speed		mm/s	130	100	140	120	90	160
Table Size ( LR* FB)		mm	400×400	500×500	690×630	720×680	800×800	1050×940
Cushion Size ( LR* FB)		mm	250×250	250×250	300×300	350×350	500×500	670×670
Outline Size	LR	mm	1380	2350	2380	2480	2500	2650
	FB	mm	850	850	900	970	1000	1250
	H	mm	2350	2350	2450	2450	2600	4550
Motor Power		kW	4	5.5	7.5	7.5	11	15
Weight		kg	2350	2750	3950	9550	7350	9850

Item(2)		Unit	HBP-315T	HBP-400T	HBP-500T	HBP-630T	HBP-800T	HBP-1100T
Capacity		KN	2500	3000	4000	5000	6000	8000
Return Force		KN	400	400	450	450	1000	1000
Slide Stroke		mm	720	800	800	900	1050	1000
Max. Daylight		mm	1150	1250	1250	1500	1500	1800
Cushion Capacity		KN	650	1000	1000	1300	1000×2	1500×2
Cushion Stroke		mm	300	300	350	350	350	400
Down Speed		mm/s	150	170	150	160	150	200
Pressing Speed		mm/s	10~22	10~19	8~19	8~19	8~18	8~18
Return Speed		mm/s	120	100	130	130	140	140
Table Size ( LR* FB)		mm	1100×1000	1260×1160	1250×1250	1400×1400	1600×1600	2200×1600
Cushion Size ( LR* FB)		mm	670×670	820×820	820×820	970×970	1120×1120	1570×1150
Outline Size	LR	mm	3250	3100	3150	3950	4150	5200
	FB	mm	1350	2100	2300	2500	2600	2800
	H	mm	4550	4750	5100	5300	5600	6450
Motor Power		KW	100	120	180	200	250	300
Weight		kg	14500	18500	22500	28500	42500	72350
