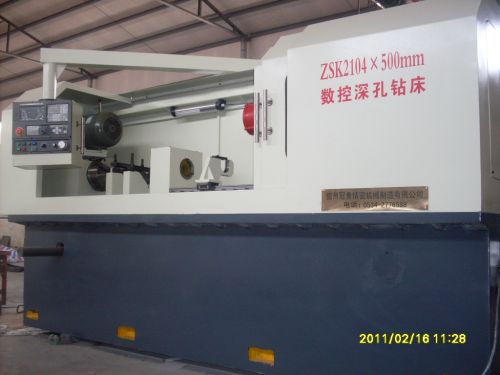

Deep Hole Drilling Machine

This machine is specialized in deep hole drilling purpose with properties of high efficiency, high accuracy and high automation. it adopts external-chip removing method (gun drill method).through one continues drilling, it can instead of traditional drilling, expanding and reaming procedure and arrive the machine accuracy and surface roughness requirement in one time
the machine is controlled by cnc system with function of both single action and automatic recycling. So that it can not only meet the requirements of small batch, but also can meet large batch.
the machine can drill through hole, blind hole and step hole. the machine can be widely used in the line of automobile and motorcycle, mould, military and aeronautics.
main specifications and features:
specifications
technical data
range of drilling diameter
(zk2102×2)3-20mm (zk2102×4)3-15mm
max. Drilling depth
600-1000mm(two models)
head cabinet spindle speed
600r/min or without head cabinet
range of drilling box spindle speed(stepless)
800-7000r/min
rang of infeed speed (z-axis)(stepless)
10-500mm/min
range of coolant pressure
1-10mpa
range of coolant flow
6-100l/min
movement speed of feeding carriage
5m/min
torque of infeeding motor
7n.m
drilling box spindle power
3kwx2(x4)
head cabinet power
3kwx2
total power of the machine
38kw(about)
overall dimension(lxwxh)
4050x4050x2050mm(500mm) 5100x4050x2050(1000mm)
machine weight
6t(500mm) 7t(1000mm)
note: driller and accessories must be ordered separately; coolant should be prepared by the user or bought from the manufacturer.
features
adopting knd single cnc system
machine body made by super casting iron, inflexibility is good.
driven by a.c servo motor, transmitted by ball screw
adopt guide-way conglutinated plastic, smooth running in low speed, without creeping
spindle of drilling bar box is driven by gear belt, controlled by inverter motor
spindle bearing and guide-way surface adopting automatic intermittent lubrication
high-pressure cooler is supplied by inverter motor-driving gear pump
flat chain type automatic chip conveyor
fully covered safe guard
