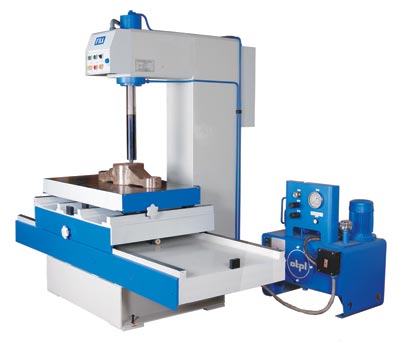

Deep Throat Brinell Hardness Testing Machine

‘fine spavy associates & engineers pvt. ltd.’ specializes in superior deep throat brinell hardness testing machines that are made from best quality materials that offers long life and ultimate strength to them. the deep throat brinell hardness testing machine offered by us is widely used as an inline production machine for batch testing of heavy jobs like wheels, discs, plates, cylinder blocks and many other items. the high and precise measurement by our machine has made us the apex deep throat brinell hardness testing machine manufacturer and supplier from miraj, maharashtra.
main components :-
c -type load frame with a deep throat of 400 mm & vertical clearance of 600 mmbrinell microscope of 25x magnificationmovable table with rollerstest blockscomputerized brinell impression measurement system
specifications :-
deep throat of 400 mmvertical clearance of 600 mm.load stages of 750 kgf & 3000kgfleast count of asuring device 0.01 mmram stroke of 300 mm with upward speed of 1200 mm/min & downward (loading) speed of 600 mm/minaccuracy conforms to is:2281-2005 & bs:240
optional accessories :-
test blocks of desired hardness rangespecial test fixtures for odd jobs / production testingcomputerized brinell impression measurement system (bims system)
