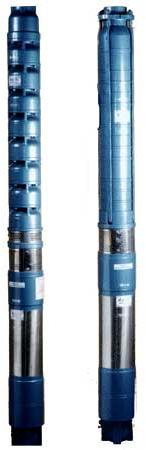

We offer Deep Well Submersible Pump Set. Our deep well submersible pump sets are in conformation with approved standards and are extremely powerful. These deep well submersible pump sets are meant for heavy duty and require low maintenance. Also, we provide our deep well submersible pump sets at competitive prices.
used in
drip and sprinkler irrigationagriculturepublic water supplyirrigationindustrial and rural water supply
appreciated for
no suction and priming problemsno need of pump housecan be easily dismantled and repairednoiseless operationyears of trouble free reliable operationdesigned for wide voltage fluctuationshigh operating efficiencyhighly durable water cooled rewind able motor
specifications
nominal diameter150 mm. (6")power range2.2 kw to 26 kw. Three phasespeed2850 rpmflow rate0.75 - 21 lpstotal head range9 - 250 mtrs.nominal outlet sizes50 mm. (2") and 65 mm. (2.5")operating range50 hz., 380 - 415 v, a.c three phasemaximum outer diameter143 mm.type of dutys1 (continuous)maximum starts per hour6 timesmethod of starting2.2 kw to 5.5 kw direct on line (dol), 5.5 kw to 26 kw star delta (sd)cable connectionpermanently connected and sealed pvc insulated 3 core flat cable
materials of construction of pumps
n.r.v. Housingclosed grain graded cast irondiffuser chamberclosed grain graded cast ironimpellerbronze / s.s. / c.i.diffuserpolycarbonate glass filled / modified ppo ( noryl) / c.i.suction inter-connectorclosed grain graded cast ironinlet screens.s. / brasspump shafts.s. 410 / 431couplings.s. 410cable guards.s.
materials of construction of motors
upper and lower housing shellclosed grain graded cast ironstator shellstainless steel / m.s.shaftstainless steel 410journal bushleaded bronze (ltb-4)thrust assemblyg.m and fibre / s.s. And teflon / s.s. And carbon
warranty
all products carry a 12 month's warranty from the date of purchase against manufacturing defectsbefore comissioning of pumpset, please go through and follow up the instructions of our operator's instructions manual book carefully
note : in view of continuous developments, the informations / descriptions / specifications / illustrations given are subject to change without notice.
