SpecificationDetails
| Device Model | CR-SM38060 |

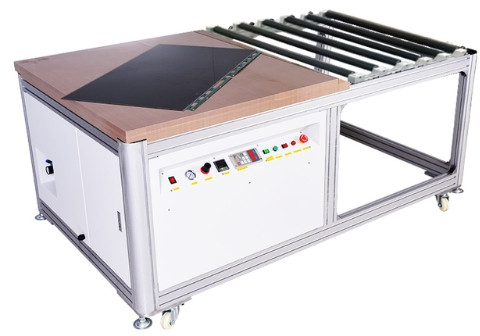

| Device Name | LCD Screen Polarizing Tear Film Machine |
| Working Principle | Manually tear a diagonal opening of 8-10 cm, fix on roller, and peel off the polarizer using a high-power inverter motor. |
| Equipment Use | Removes polarizers from LCD panels during rework processes, ideal for thin and large panels. |
| Suitable Panel Size | One-time operation for panels up to 32 inches; multiple operations for larger panels. |
| Key Function Characteristics | – High-precision concentric hobbing steel wheel for smooth peeling without deformation. – Nine concentric anti-static rubber rings reduce breakage risk. – PID temperature controller for precise speed control. – Customizable specifications based on customer requirements. |
| Input Power | AC 220V, 50-60 Hz |
| Rated Power | 2-6 KW |
| Working Pressure | 0.4-0.8 MPA |
| Peeling Off Speed | Adjustable |
| Heating Method | Constant temperature |
| Temperature Range | RT-500℃ (adjustable) |
| Thermocouple | K-type |
| Operating Mode | Button operation |
| Equipment Material | Steel, electrophoresis aluminum, iron, plastic |
| Equipment Packaging | Wooden boxes, made of glued board (no fumigation required for export) |
| Dimensions (L x W x H) | 1800 x 1080 x 910 mm |
| Package Size (L x W x H) | 1950 x 1220 x 1240 mm |
| Net Weight | 210 kg |
| Gross Weight | 290 kg |
