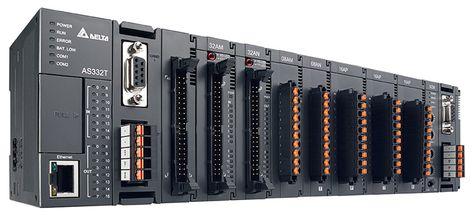

Delta AS Series PLC

It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.
Specifications

• New 32-bit SoC (System on Chip) CPU
• Max. I/O: 1,024
• Program capacity: AS300 series 128k steps, AS200 series 64k steps
• Data registers: 60k words
• Extension modules: max. 32 (analog modules: max.16 / communication modules: max. 4)

• Execution speed: up to 40 k steps / ms

  •       - Basic instruction (LD): 25 ns     - Application instruction (MOV): 0.15 μs

• Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.
