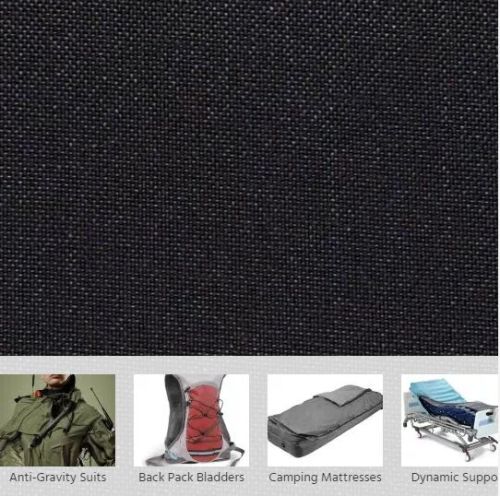

DENIER NYLON OXFORD Fabrics

200 DENIER NYLON OXFORD
Test Reference
Federal Std. 191A
Mil-C-83489 Typical Result
(Standard Units) Typical Result
(International Units)
Base Fabric Weight
5041 3.1 Ounces Square Yard 105 Grams Square Meter
Total Weight
5041 6.8 Ounces Square Yard 231 Grams Square Meter
Tongue Tear
5134 4 Warp
3 Fill (Pounds) 18 Warp
13 Weft (Newtons)
Tensile Strength
5102 130 Warp
100 Fill (Pounds Inch) 569 Warp
438 Weft (Newtons 25 mm)
Breakaway Adhesion
(RF Weld) Film to Film
Mil-C-83489 4.4.1 65 Pounds Inch Warp 285 Newtons 25 mm Warp
Strip Adhesion
(Heat Sealed) Film to Film
5970 40 Pounds Inch Warp 175 Newtons 25 mm Warp
Hydrostatic High Pressure
Mil-C-83489 4.4.1 275 Pounds Square Inch 1896 kPa
Air Retention
(Film Side Only)
Mil-C-83489 4.4.2 Pass 10 PSI No Leaks 5 Minutes Pass 69 kPa No Leaks 5 Minutes
Low Temperature
Mil-C-83489 4.4.3 No Cracking, Flaking, or Separation at -40° Fahrenheit for 4 Hours No Cracking, Flaking, or Separation at -40° Celsius for 4 Hours
Blocking (Film to Film)
5872 No Blocking at 180°F for 30 Minutes No Blocking at 82°C for 30 Minutes
