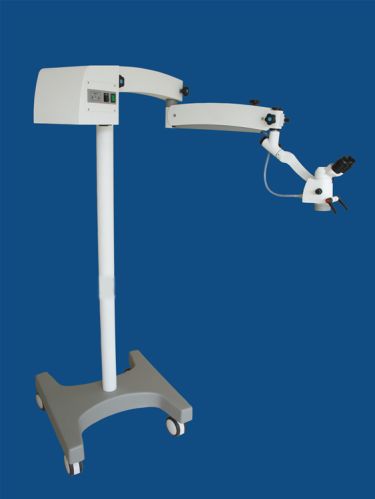

Dental Microscope

We are offering dental microscope.
standard unit for dental surgery
yellow filter
objective lens with fine focus
0-180 degree inclinable binoculars available
specifications
microscope
binoculars 45 degree inclined binoculars f'=160 mm
objective f'=250mm (with fine focus 235mm to 265mm)
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 3x, 5x, 8x, 13x, 20x
visual field 65 mm to 10 mm
interpupillary distance 55mm to 75 mm
working distance 230 mm to 260 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w, twin bulbs
illumination control continuous, by switch button on panel or brightness control knob
field of illumination 55 mm
power supply ac 110v60hz 220v50hz c 220w
light intensity 50, 000 lux
filter green, yellow, blue
arm, stand
type pantographic arm, floor stand
range 1250mm( 1st arm 500 mm, 2nd arm 550 mm, 3rd arm 200 mm)
rotation angle 360 degree
elevation stroke 400 mm
base size 600 mm x 600 mm
weight 95 kgs
accessories
binoculars 0-180 degree inclinable binoculars f'=170 mm
objective f'=200mm, 250mm, 300 mm
beamsplitter dismountable
adaptor for ccd camera with iris diaphragmf'=65 mm
integrated bs and ad
ccd camera
