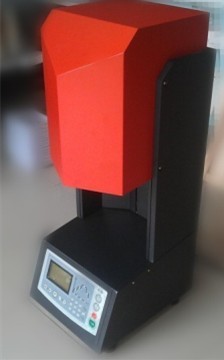

Dental Zirconia Sintering Furnace

We are offering Dental Zirconia Sintering Furnace.
Function and features
This chamber is made by 1800℃ resistance ceramic fiber through a die casting die forming. Has a superior impact resistance and thermal insulation effect. It’s can achieve the highest long sintering temperature is 1650℃ and proved that no dust off, so that the product in sintering will not be polluted, the chamber will keep clean.
The operating procedure is made by computer; each node of the temperature was strictly estimate reference to the world’s most sophisticated temperature meter test table for programming, to ensure that the actual temperature and display temperature synchronization requirement. The procedure of furnace is programmed according to different technical parameters zirconia material and different denture, and it can save program memory, simple one-button operation is enable again. Sintering temperature and time can be got at a glance through the sintering curve and marks on LCD screen. Sintering can be extended to the current sintering temperature to complete the remaining procedures after restart caused by sudden power outage, it don’t need to start from the original state. It’s set anti-burning and splitting procedure, when the temperature is up to 350℃ (can be set freely according to your own requirements) the furnace will automatically lock, then must wait until the temperature falls below the set temperature will be automatically open furnace. This program effectively prevents product damage or person injury due to stove base decline under high temperature sintering caused by wrong operation.
Main parts:
A. Control system box base
B. LCD and Membrane of keys
C. Annular high-temperature and fire-resistant chamber (don't slag in 1650 degree long time sintering )
D. Silicon molybdenum heating wire(6pcs import molybdenum wires in chamber)
E. Intelligent lift stove base
F. High-temperature fire-resistant sintering box
G. Sintering box placed platform
H. Power module
I. Control board
J. Lifting system
K. Cooling fan
L. Import leakage protection power main switch
M. Main power switch wire
N. Furnace shell
Technical parameter
A. Sintering temperature: you can set temperature curve according to different zirconia.
B. Long time sintering temperature can't over 1650 degree
C. Sintering power: Highest 2800W
D. Input voltage: AC220V±10%
E. Frequency: 5060HZ
Function and characteristic
A. Drying time: 10-30mins (Settable)
B. Warming up time: 90-180mins (Settable)
C. Sintering time: 60-240mins (Settable)
D. Cooling time: 60-150mins (Settable)
E. Open chamber temperature: 250 -450 degree (Settable)
F. Heating rate: 10 -20 degreemin (Settable)
G. Sintering procedures: 1-10 (Optional & Settable)
Accessories
Sintering box 3pcs
Stainless tray 2pcs
Alumina hollow balls 200g
Allen wrench 1pcs
Plum screwdriver 1pcs
Box forceps 1pcs
User’s manual 1pcs
Packing list 1pcs
