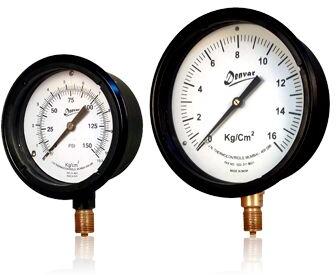

| Dial Size | 65mm, 100mm, 150mm and 250mm. |
| Accuracy | ±1% F.S.D. (±0.5 optional) ±2% for 65mm dial |
| Range | From -760MMHg (Vacuum)to up to +600 kg/cm2( All Std. Ranges) |
| Over range protection | 30% or as per class I / II of IS 3624 |
| Dial | Aluminium Black Graduation on White Background. |
| Casing | Die cast aluminium screwed case with inner Bezel of A.B.S. plastic or aluminium, Weatherproof as per IP55 or IP65 |
| Mounting | Direct mounting Bottom or Back entry, Back entry bracket mounting. |
| Connection | 3/8”, 1/2" B.S.P. or N.P.T. , M 20 X 1.5 (M) and other |
| Fitments | Zero adjustment pointer and Blowout safety disc. |
| Bourdon & Socket | Stainless Steel 316L / Brass. |
| Movements | Stainless Steel 304/Leaded Brass. |
| Joints | For Stainless Steel - Argon arc welded, for nonferrous hard soldered. Heat treated stress relieved |
| Temperature Limits | Max 270°C for Stainless Steel and 125°C for Nonferrous. |
| Optional Fitments | Toughened or Acrylic glass, Electrical Magnetic single or double snap action Contacts, Glycerine filling, Max. reading pointer, diaphragm units, Gauge Saver, Syphon, Gauge Cock, Dampers etc. |
