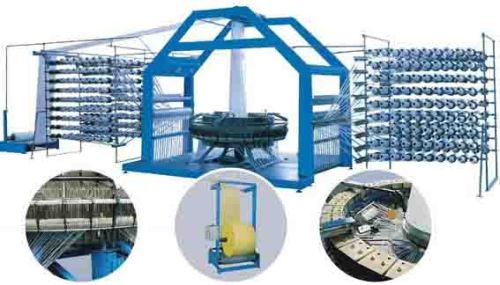

Dependable Performance PP Woven Bag Making Machine

We are offering dependable performance pp woven bag making machine
small cam 6 shuttle circular loom
1 small cam and connecting rolling wheel transmission which is the most advanced technology is adopted making it easy and stable to run.
2 rolling transmission is adopted in entire structure instead of slide block and slide rod,which doesnt need lubricant and decreases the wearing part.
3 base band belt from italy is used,which is durable and will not break or be stretched.
4 it can be configured with automatically stop detecting unit when meeting the situation of warpweft breaking weft ending.the stoppage unit is sensitive and reliable.
5plc centralized control is adopted for electric controlling,as well,frequency speed regulation which is convenient and stable.
6 it is high-efficient and energy economical.the highest rotation speed of the main motor can reach 180rmin and the power is 3kw.which can save 10 thousand degree electricity compared with the traditional small-sized six shuttle circular loom whose power is 4kw.
Main technical parameter
model s-yzj-8506s
number of shuttle 6
weaving folding width 350-850
max.number of warp 720
revolution of main motor 120-180rmin
production capacity 1.8-2.7mmin
power of main motor 2.23kw
total power 2.73.5kw
weight(about) 3000kg
overall dimension(l*w*h) 9100 2410 3100mm
