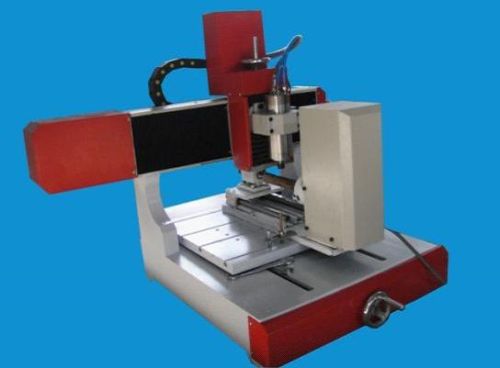

Desktop CNC Engraving Machine

MOQ1 Piece(s)
Drive Motor Servo/stepper(optional)
Resolution 0.01mm
Diameter of rotary 8cm(10cm optional)
X,Y,Z structure Imported ball screw
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Spindle rotating speed 0-24000r/min
Command G code*.u00*.mmg*plt
X.Y working area 300mm*300mm
Cooling mode Water cooling
X,Y,Z structure Imported ball screw
Spindle power 1.5KW
Operating system NC Studio
Drive Motor Servo/stepper(optional)
Work-holding By clamp
Net weight 300kg
Diameter of cutter 3.175-8
Table size 500mm*500mm
Working voltage AC220V/50/60 Hz ,2PH
Max speed 9m/min
Diameter of rotary 8cm(10cm optional)
Resolution 0.01mm
Z working area 200mm

We are offering desktop cnc engraving machine for mdf.
1.    whole cast by aluminum,it can process cylinder materials.
2.    adopt 1.5kw china domestic made water cooling spindle.
3.    three axes adopt imported ball screw and circle orbit,stable working,high precision and long life time.
4.    x axis is dustproof.it makes sure the steady working performance of the machine for long-term using.
5.    well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/wentai etc.
6.    has the function of forecasting process time.
7.    high precision,the curving and linear speeds are consistent.adopting excellent parts makes the fault rate to be the lowest one.
