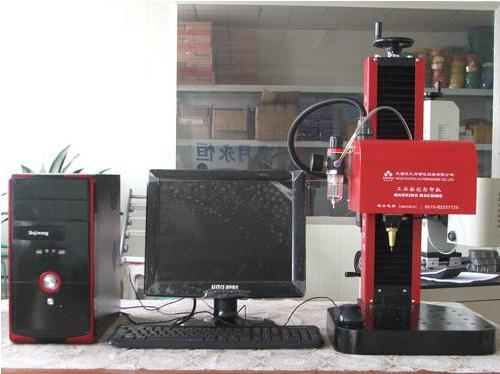

Contact SupplierWe are offering desktop pneumatic marking machine.
Key features: available in a variety of materials and parts to print any graphics and english characters, any editing adjust character size, with automatic print the date and water code, vin code. Available communications networking; worktable precision die casting, imports 64 sub-drive, imported linear guide rail, high-precision stepper motor reliability, print accuracy, repeatability and high accuracy. Applications: suitable for a variety of metal or non-metallic signs, marking parts of the plane, as well as the radial cylindrical workpiece marking. In particular, for a variety of nameplates, signs marking, easy to use and economical.
the main technical indicators:
marking: 125x85 (150 × 130
marking depth: 0.01 ~ 2mm (depending on material hardness may be)
marking speed: 30 ~ 40mm s
lifting range: 300mm
total power: 500w
air pressure: 0.3 ~ 0.6mpa (industrial gas source or compressor air source)
power requirements: 220v ± 10% 50hz ± 1%
material hardness: ≤ hrc60.
