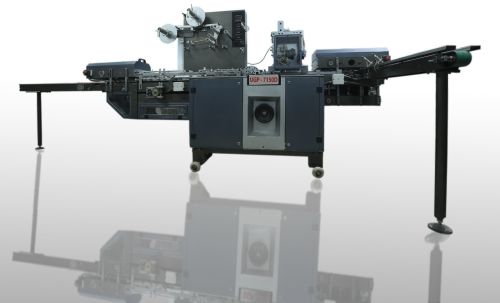

Detergent Bar Soap

With rich industry experience and knowledge, we are providing an excellent quality range of Detergent Bar Wrapping Machine.
Details:

\r
• Laundry bar wrapping Machines has been designed to pack laundry cake in a single wrap of wrapping paper.
\r
• The machine has been designed to handle heat sealable wrapper, laminates and Poly coated wrapping material.
\r
• This machine is built from high precision components having the desired metallurgical and heat treatment characteristics, resulting in lower wear and tear, high life and less maintenance.
\r

Working Principle:

\r
• The soap cakes are fed onto a continuous motion In-feed Conveyor.
\r
• The In-feed pushers take the soap cakes to the wrapping feed station.
\r
• With the help of pulling rollers, the reel fed wrapper is positioned between the cakes and tumble box.
\r
• The wrapper is cut to the required length as the in-feed pushers push the soap along with the cut wrapper into the turret.
\r
• Spring-loaded end blocks retain the product in position.
\r
• The turret box then indexes by 180 degrees and resulting in top folding.
\r
• The next incoming cake pushes the previously packed cake forward which is further pushed into the sealing zone.
\r

Feature:

\r
• Machine suitable for detergent bar/laundry bar
\r
• Heavy duty cast structure
\r
• Machine weight: Approx. 1600 Kgs
\r
• Speed up to 180 TPM depending upon the product dimensions, laminate quality and feeding of soap
\r
• Directly linkable to bar cutting machine through conveyor for automatic feeding of bars
\r
• Fixed/Adjustable size turret assembly
\r
• Designed to handle soft bar
\r
• Soap moves on belts with the pusher to avoid any scratch mark.
\r
• Double spool arrangement for wrapper to save change over time of paper roll to increase the uptime of machine
\r
• No soap and no wrapper interlock through PLC
\r
• AC variable speed drive unit
\r
• Double chain for overhead infeed conveyor
\r
• Double chain for overhead discharge conveyor
\r
• Speed of machine directly proportional to soap feeding
\r
• Stop-start mechanism with Geneva Drive for auto feeder belt conveyor
\r
• Collator unit for easy collection of packed bars
\r
• Two sided heaters and cooling unit provide better sealability
\r
• Double corrugation rollers
\r
• Different cut length for paper stiffener lengths can be made at a cut off unit quickly.
\r
• Separate temperature controller for topside heaters and rear heater.
\r
• Infeed queue pressure release mechanism while transferring the soap from infeed belt conveyor to prevent dent marks
\r
• Centralized lubrication system
\r
• Print control system with worm and worm wheel mechanism
\r
• Cooling unit for the electrical panel.
\r
• PID temperature controllers.
\r
• Wrapper : Paper / Poly / Hot Melt Lamination Max Dia 450mm
\r
• Core ID 70mm
\r
• Stiffener: Card paper / poly laminated
\r

Specifications:
