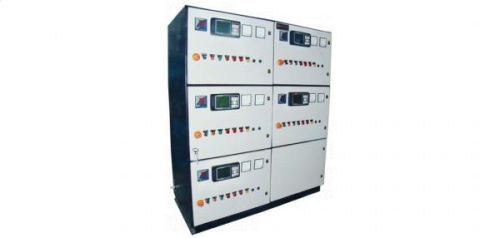

Dg Synchronizing Panel

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are actively engaged in manufacturing and export of high performance DG Synchronization Panel which comes complete with Controlling & Protection Relays capable of synchronizing of more than one DG sets / with Mains & DG and with necessary protections. The offered product is precisely designed and manufactured by utilizing optimum quality raw material and sophisticated technology. Furthermore, we offer this DG Synchronization panel in various technical specifications at affordable prices.

View More Details

Send Enquiry

Company Information

Rupinder electrical Works

Longowal, Sangrur, Punjab

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Applications	Control, Synchronizing, Load Sharing/Load management of DG Sets through control relay with aor without PLC based cum manual
System	3 Phase, 3 or 4 wire, 50Hz
Rated Current	Upto 6300 Amps
Operational Voltage	110/230v 415v AC
Rated Insulation	1000v
Rated Service Voltage	690v
Ambient Temperature	45 Deg C
Short Time Current	50KA for 1Sec, 105KA peak
Degree of Protection	IP42-IP54
Form of Sepration	Upto 3B/4B (Optional Type 5)
Type Tested for	Short Time Current withstand Temperature Rise Degree of Protection
Bus Bar System	Interleaved above 1600A
Bus Bar	Aluminium or Copper
Ref. Standard	IEC61439-12009, IS:8623
Feeder Configuration	Semi Drowout or Fix Type
