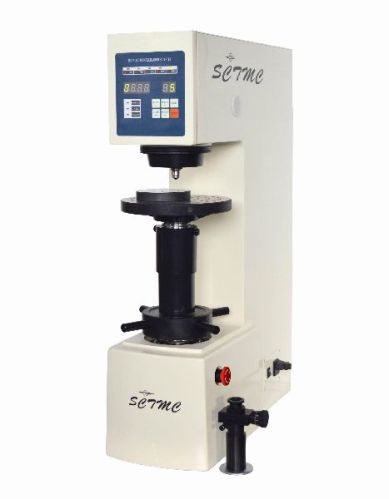

DHB-3000 Electronic Brinell Hardness Tester

Microscope20× Reading Microscope
Test Force in kgf62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
Throat135mm
Packing Dimension650×435×1025mm
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Test Force in kgf62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
Net Weight130kg
Microscope20× Reading Microscope
Test Force in N612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Max. Height of Specimen220mm
Throat135mm
Execute StandardISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Test Range3.18 - 653HBW
Dwell Time0~60s
Power SupplyAC220V, 50Hz
ModelDHB-3000
Gross Weight160kg
Packing Dimension650×435×1025mm
Minimum Division Value of Drum Wheel5μm
Dimension545×235×755mm

Main Function : DHB-3000 Electronic Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation. It can be equipped with V1.0 Brinell image automatic measuring system.
Application range : Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Packing List

Name	Qty
Instrument Main Body	1 set
Ð¤2.5mm, Ð¤5mm, Ð¤10mm Ball Indenter	each 1 pc
Small Plane Test Table	1 pc
Hardness Block 150~250 HBW 10/3000	1 pc
Fuse 2A	2 pcs
Anti-dust Cover	1 pc
Usage Instruction Manual	1 copy
20× Reading Microscope	1 pc
Large Plane Test Table	1 pc
V-shaped Test Table	1 pc
Hardness Block 150~250 HBW 5/750	1 pc
Power Cable	1 pc
Brinell Hardness Table	1 copy
