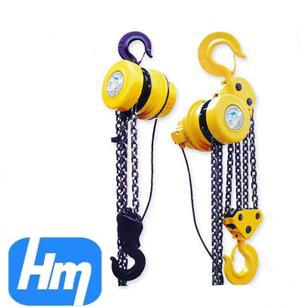

Dhp Chain Electric Hoist

We are offering dhp chain electric hoist.
dhp electric endless chain motor lifting hoist is the new product of our company. It is either easy to carry or improve the disadvantage of manual operation and low lifting
dhp electric hoist technical parameters：
model dhp1 dhp2 dhp3 dhp5 dhp10
rated load t 1t 2t 3t 5t 10t
testing load t 1.25t 2.5t 3.75t 6.25t 12.5t
lifting speed m/min 2.5m/min 2.5m/min 2m/min 2m/min 1m/min
loop track minimum radius mm 300 380 470 600 730
standard lift m 3 m
power 0.5kw 0.8kw 1.1kw 1.5kw 0.8kw
frequency hz 380v 50hz
weight 42kg 50kg 55kg 62kg 120kg
