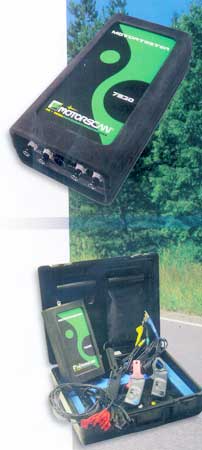

ENGINE TESTER FOR SPECIFIC DIAGNOSIS - - - -­ PC based Engine Analyser able to carry out the following functions:

Double trace oscilloscope with memory.

Primary and Secondary (raster parade and single cylinder)

Oscilloscope two channels

Start up and recharging diagnosis

Advance with Timing Light and magnetic captor

Dynamic compression

DIS ignitions

Bargraphics

Data Bank included

To be used with PC operating in Windows 98 or upper versions TECHNICAL FEATURES:

Mains Voltage: 230 Vac with power supply included

Mains Frequency: 50Hz (:!:20f0)

Power Consumption: 0,5 W max

Dimensions (device only): 31 OX150X85 mm . Weight (device only): 1 kg approx. FUNCTIONS:-

LAB SCOPE:

Sampling rate: 2 million samples per second

Band width: (-3d B) DC - 60KHz

Sweep rate: 100 J.1s/div to 10 s/div.

Voltage range: :!: 125 mV/div. to :!:50 V/div.

Accuracy: 0.50f0

Time base: 100 J.1s/div. to 10 s/div.

Trigger with auto reset capability IGNITION:

RPM range: 100 to 9999 min-1 (resolution of 1 RPM) . Primary voltage: 0 to 750V

Secondary display ranges:

9 kV to +45 kV

5 kV to + 25 kV

1.2 kV to + 6 kV

Time base: 1.0 ms/div. to 10ms/div.

Burn time 0 to 10ms (0, 1 ms resolution)

Dwell range

Degrees: 0° to 360°, 1 ° resolution

Percent: 0 to 1000f0, 10f0 resolution

Burn kV: 0 to 6 Kv ENVIRONMENTAL OPERATING SPECIFICATION

Operating temp. 0 to 45°C

Storage temp. -5 to 50°C

Operating and storage humidity 20 to 85 Ofo

Dust, water and grease resistant
