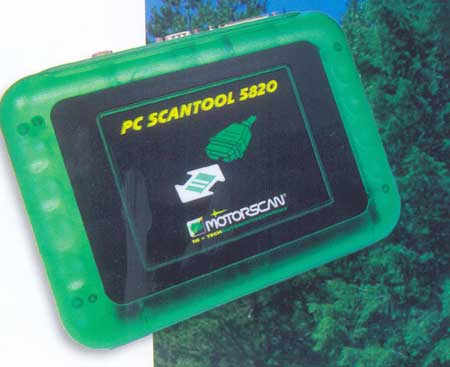

Diagnostic Electronic System

TOTAL DIAGNOSIS ELECTRONIC TECHNICAL FEATURES

Dimensions: 240mm X 190mm X 50mm

Weight: 1 kg approx. [tool only, without accessories)

Power Supply: 8+45 Volt cc typically 12 Volt from diagnostics socket or vehicle battery with supplier

Power consumption: 3W@12V

Working temperature: 10-40 °C

Serial: RS232 - for HOST connection and SW update

Interface protocols: ISO 14230-4 [Keyword 200m IS09141-2 IS011519-4 [SAE 51850 41.6 Kbps PWM) [SAE 51 850 1 0.4 Kbps VPW) IS015765-4 [CAN BUS)

Safety Key: HW with protected Smartcard:

option to use like pre-paid card for upgrades;

possibility to enable the remote control

Multibrand diagnostics: thanks to the multibrand cables supplied with the tool it is possible to carry out the diagnosis of all car brands. ACCESSORIES

Switching Power supply 15Vdc-1 A with net cord

Serial cable for SW updating and for the connection to the PC "OBO cable I FIAT cable I OPEL cable I PSA cable RENAULT VAG cable I FORD cable I BMW cable I ROVER cable UNIVERSAL cable I MERCEDES cable PSA2 cable cod.

CD including all Motorscan user's manuals in PDF format

ECU SOCKET BROWSER 5606/USB

Anti-shock case FUNCTIONS AND ADJUSTMENTS Refer to the functions adjustments of TotalDiag 5800 PAG 6. OPTIONAL ACCESSORIES

USB/RS232 Adapter 10005 I Kit Bluetooth 10001/192
