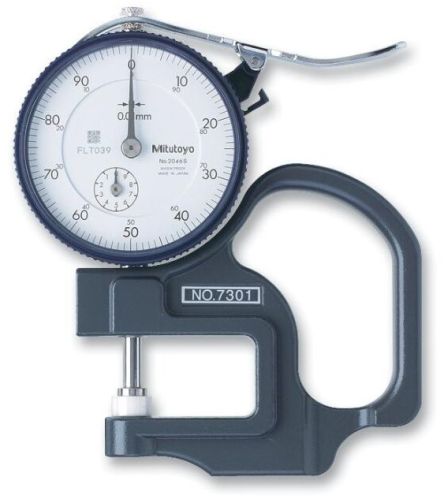

Dial Thickness Gauge Dial Thickness Gauge – Typical Specifications
| Measuring Range | 0–10 mm, 0–20 mm, 0–30 mm (metric) or 0–0.4 ", 0–1 ", 0–1.2 " (imperial) |
| Resolution (Graduation) | 0.01 mm, 0.001 mm (metric) or 0.001 ", 0.0005 " (imperial) |
| Accuracy | ±0.02 mm to ±0.03 mm |
| Throat Depth | 30 mm to 150 mm (determines how far material can extend into the gauge) |
| Contact Force | Typically 1–2 N (low and consistent to prevent material compression) |
| Contact Point | Flat or spherical; interchangeable in some models |
| Anvil Material | Hardened steel, carbide, or ceramic |
| Body/Frame Material | Die-cast aluminum or steel |
| Dial Face Diameter | 30 mm to 60 mm |
| Zero Adjustment | Provided with rotating bezel |
| Operating Mechanism | Lever-type (hand-operated), spring-loaded spindle |
Easy, one-handed operation (lever or plunger style)
Zero-set capability
Lock screw (on some models)
Anti-parallax dial for precise reading
Lightweight and portable
| Paper, film | 0.001 mm |
| Rubber, plastic | 0.01 mm |
| Sheet metal | 0.01 mm or 0.001 " |
| Textiles, fabric | 0.01 mm |
