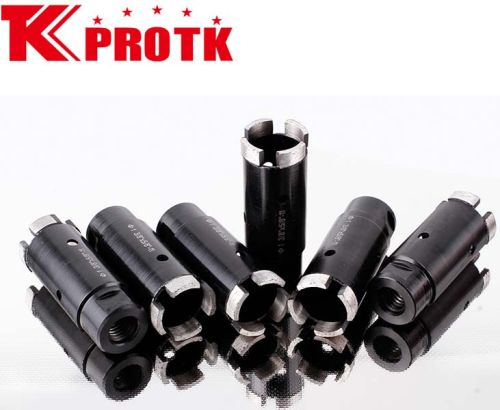

Diamond Core Bit (TK-E)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Located in Yongkang, China, we are an eminent manufacturer, exporter and supplier of Diamond Core Bit (TK-E). The Diamond Core Bit (TK-E) is K-E type which has diamond core bits either laser or brazed welded. The product is used to drill the reinforced concrete, brick and granite. We provide a wide range of the product at reasonable and affordable price. We do the standard packaging and delivery is done in time. Details : Diameter 5mm to 32mm is brazed welded. Diameter 35mm to 102mm is laser welded.

View More Details

Send Enquiry

Product Details

Specifications

Diameter	Segment height	Segment Qty	Effective length
5mm / ( 3/16”)	9mm	1	70mm
6mm / (1/4”)	9mm	1	70mm
10mm / (3/8”)	9mm	2	70mm
12mm / (1/2”)	9mm	2	70mm
16mm / (5/8”)	9mm	2	70mm
25mm / (1”)	9mm	3	70mm
28mm / (1-1/8”)	9mm	3	70mm
32mm / (1-1/4”)	9mm	4	70mm
35mm / (1-3/8”)	9mm	4	70mm
37mm / (1-1/2”)	9mm	4	70mm
41mm / (1-5/8”)	9mm	4	70mm
44mm / (1-3/4”)	9mm	4	70mm
48mm / (1-7/8”)	9mm	4	70mm
51mm / (2”)	9mm	4	70mm
63mm / (2-1/2”)	9mm	5	70mm
76mm / (3”)	9mm	5	70mm
83mm/(3-1/4")	9mm	5	70mm
102mm/(4")	9mm	6	70mm
