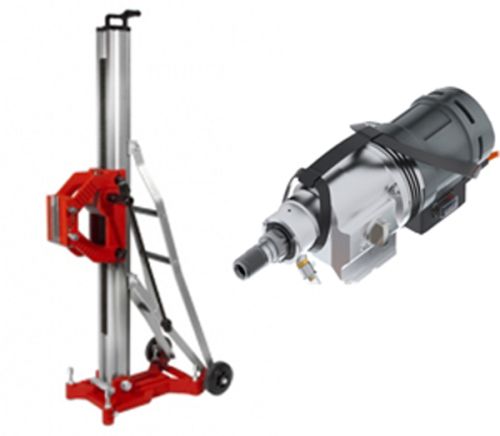

Diamond Core Drilling Unit

We are offering diamond core drilling unit 5cbe470 from bluetec
for core drilling into reinforced concrete up to ø 470 mm (18,5")
consisting of:
diamond core drilling motor made by dr. Bender
handmade top class motor for high performance
3300 w
3-speed gear (180,430,750 rpm)
weight: 13,2 kg
for wet drilling
suitable to fit into core drill rigs cst500 or adequate core drill rigs
standard hole configuration for fixing to the drill rig with quick change module
for drilling up to ø 470 mm
connection core drills 1 14"
water feed and prcd safety switch
mechanical clutch
the compact design of the motor allows drilling very thight to the wall
- made in germany -
diamond core drill rig with quick motor change module
compatible for all core drill motors with standard fixing hole confirguration
weight 26 kg
very robust
for drilling up to ø 500 mm
tiltable to 45 degrees for inclined holes
max. Core drill length 800 mm
2-step drilling transmission (slow for rebar, fast concrete)
standard fixing with fasteners
adjustable fixing screws to set the stand in exact position
all screws same keywidth to depend on just one key
transport wheels integrated
-made in eu-
