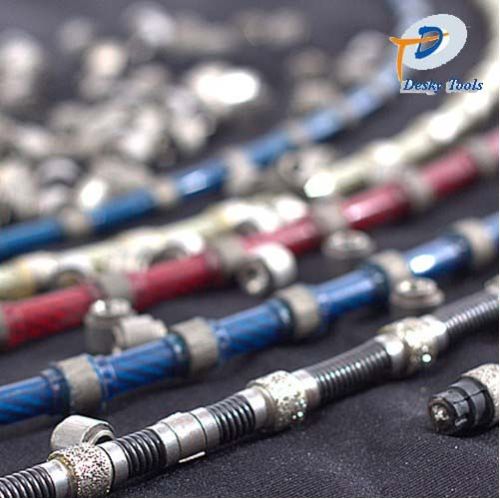

Contact SupplierWe are offering diamond saw wire for marble profiling.
specification and performance parameters of diamond wire saw:
model no.
specification(mm) beadsm reinforcement
dtm80p37 î¦8.0 37 plastic
dtm73r37 î¦7.3 40 rubber
dtm88p33 î¦8.8 33 plastic
cutting material line speed( ms) cutting speed(mâ²h) wire life( mâ²m)
low rigidity granite 30-34 100-150 35-45
mid-rigidity granite 28-32 80-120 25-35
hard granite 26-30 70-100 20-30
specification and technical parameters of diamond beads:
specification outer diameter(mm) height of work layer(mm) length(mm) manufacture tech
î¦8.8 î¦8.8 6.0 9.5 sintered
î¦8.0 î¦8.0 6.0 9.5 sintered
î¦7.3 î¦7.3 6.0 9.5 sintered
#other specification are available upon buyer�s requirements
