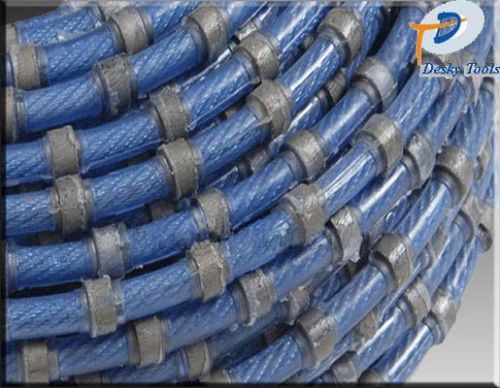

Diamond Wire

We are offering diamond wire for marble block squaring.
Specification and performance parameters of diamond wire saw:
model no. specification(mm) beadsm reinforcement
dtm100p33 î¦10.0 33 plastic
dtm105p33 î¦11.5 33 plastic
dtm105r37 î¦10.5 37 rubber
cutting material line speed( ms) cutting speed(mâ²h) wire life( mâ²m)
low rigidity granite 30-35 90-130 30-40
mid-rigidity granite 28-32 70-100 25-30
hard granite 26-30 60-80 10-20
specification and technical parameters of diamond beads:
specification outer diameter(mm) height of work layer(mm) length(mm) manufacture tech
î¦11.0 î¦11.0 6.4 10.0 sintered
î¦11.5 î¦11.5 6.4 10.0 sintered
#other specification are available upon buyer�s requirements
