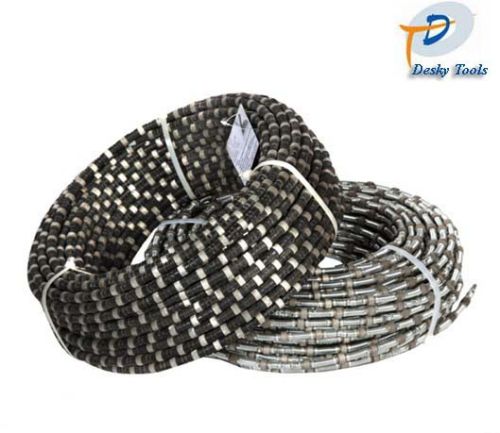

Diamond Wire Saw For Marble Quarries, Brand Name : Detian

We are offering diamond wire saw for marble quarries.
specification and performance parameters of diamond wire saw:
model no. specification(mm) beadsm reinforcement
dtm115s28 φ11.5 28 spring
dtm110p37 φ11.0 37 plastic
dtm115r40 φ11.5 40 rubber
cutting material line speed( ms) cutting speed(m²h) wire life( m²m)
low rigidity granite 30-35 9-12 25-45
mid-rigidity granite 28-32 7-10 15-25
hard granite 26-30 4-8 10-20
specification and technical parameters of diamond beads:
specification outer diameter(mm) height of work layer(mm) length(mm) manufacture tech
φ11.0 φ11.0 6.0 11.0 sintered
φ11.5 φ11.5 6.4 11.5 sintered
#other specification are available upon buyer’s requirements.
