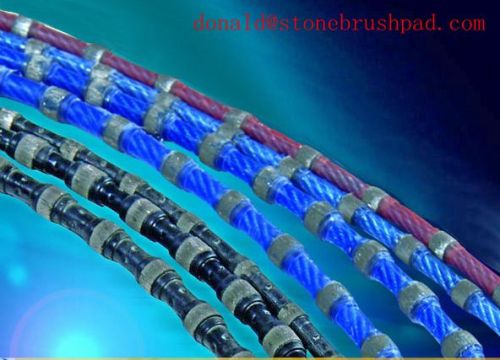

Diamond Wire Saw

We are offering diamond wire-saws are widely used for granite quarries . The main specialties of diamond
wire-saws are :
· to be able to used for great area granite quarries cutting
· to get high percentage of forming dimension stone
· high manufacture efficiency
· safety, low- noise, no- dust and friendly surroundings
· low cutting cost.
the advantage of rubber wire saw for granite quarry
1.the rubber adheres better to the beads and support cable, which protects it better from the
action of abrasive pastes, in particular when the cable takes up small radii of curvature
(beginning and end of quarry cuts).
2.the rubber easily withstands increases in temperature caused by badly controlled water
spraying, which often happens in a quarry, whereas plastic softens and losses its strength
properties.
3.the flexibility of a cable fitted with rubber is greater, which reduces the risk of irregular wearing
of the beads (ovalisation phenomenon).
37-75kw wire saw machines are more used for granite quarry, the water spraying between
25-50 lmin according to the cut dimension.
other specifications are available upon customer's requirements.
Recommendations:
· the rotation of the wire should be regularly checked.
· the worn condition of beads should be regularly inspected.
· the worn condition of connections & the beads near connections should be regularly checked
. Change connections when it's needing.
· the cable tension is set in 250-300kg(φ4-5mm cable).
· adjust the linear speed of the wire according to the material being sawn:
· during the sharpening of a new wire, the liner speed should be reduce
