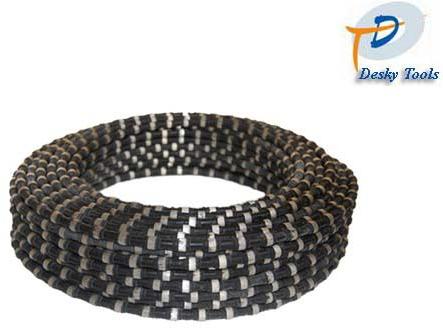

Diamond Wire Saws, Brand Name : detian

We are offering diamond wire saws for granite quarries.
specification and performance parameters of diamond wire saw blade:
model no. specification(mm) beadsm reinforcement
dtg115p40 φ11.0 40 plastic
dtg115r40 φ11.5 40 rubber
dtg115p40 φ11.5 40 plastic
cutting material line speed( ms) cutting speed(m²h) wire life( m²m)
low rigidity granite 24-28 4-7 10-20
mid-rigidity granite 22-24 2-4 8-14
hard granite 18-22 1-2 6-9
abrasive granite 26-30 4-7 10-20
specification and technical parameters of diamond beads:
specification outer diameter(mm) height of work layer(mm) length(mm) manufacture tech
φ11.0 φ11.0 6.4 10.0 sintered
φ11.5 φ11.5 6.4 11.5 sintered
#other specification are available upon buyer’s requirements.
