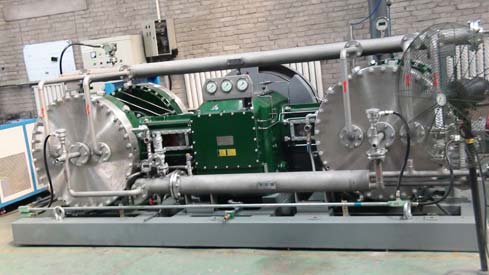

Diaphragm Compressor (GD Series)

FeatureHigh Compression Ratio, Fine Leakage Tightness
Number Of FlowerAutomatic
Outlet Pressure2000 Bars
Inlet Pressure Range-0.5 To 400 Bars
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

We are the exporters and suppliers of Diaphragm Compressors based in Wenling City, Zhejiang. This compressor is alternately designed in its volume type variant and is featured with a high compression ratio. It also has fine leakage tightness. Diaphragm compressor is utilized for the purpose of compressing oxygen with the mixture of other corrosive gases. The inlet pressure of this series ranges from -0.5 to 400 bars and the outlet pressure is 2000 bars.

View More Details

Send Enquiry

Technical Specification

Model	Capacity	Inlet Pressure	Out Pressure	Power	Cooling Water	Dimension LXWXH	Weight
Model	Nm³/h	bar	bar	kw	m³/h	mm	kg
GD-150/0.01-7	150	0.01	7	45	5	4200X3400X2000	13800
GD-320/0.5-13	320	0.5	13	75	5.5	4500X3800X2000	13800
GD-1450/11-25	1450	11	25	75	7	4200X3400X2000	13800
GD-1000/14-50	1000	14	50	75	7	4200X3400X2200	13800
GD-120/1-200	120	1	200	55	5.5	3500X2300X1500	8500
GD-300/5-150	300	5	150	75	6	3500X2300X1600	8500
GD-600/12-40	600	12	40	55	6	3500X2300X1550	8500
GD-300/6-50	300	6	50	55	5	3500X2300X1550	8500
GD-360/15-200	360	15	200	75	6	3500X2300X1350	8500
GD5-1000/7-150	1000	7	50	200	18	4000X2400X2000	10600
GD5-7340/66-87	7340	66	87	110	8	3500X2800X1900	9800
GD6-6000/70-150	6000	70	150	280	25	5500X2800X1901	24000
