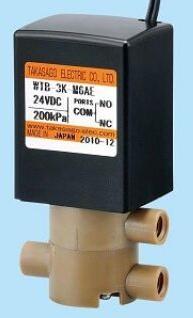

PEEK Diaphragm Isolation Valves WTA WTB Series, Brand Name : TAKASAGO

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid, which is covered by a plastic case.
rnPlease contact us for more details of this solenoid diaphragm valve, WTA series and WTB series.
Method SolenoidrnOrifice（mm） 1.6 - 2.0 mmrnType 2way-NC, 2way-NO, 3wayrnIN port pressure
-90～200 kParnYou can choose the pressure unit.
OUT port pressure (NC)
-～- kParnOUT port pressure (NC)(NO)
-～- kParnPort connection M6, 1/4-28UNF, Hose barbrnBody material PEEK, PPS, PTFE,rnSeal material PTFE, FPM, PerfluorrnOther wetted materials PTFErnRated voltage 12VDC, 24VDCrnPower consumption 2.8 - 3.4 WrnOperating duration ContinuousrnOuter dimensions rnFluid temparature range -～- ℃rnAmbient temparature range -～- ℃
