Diaphragm Valve, Size Range : 15MM TO 100MM (NB)

Size Range15MM TO 100MM (NB)
Hydrostatic TestAt 10 kg/Sq.cm.g for Body and Seat
DrillingAs per all internationally accepted standards, such as BS, DIN, ASA 150 Etc.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

One piece sturdy body with cross ribs to reinforce end flanges. Latest inverted design diaphragm remains unstressed while valve is in closed position give more service life. Deep seat allows maximum flow & excellent throttling characteristics. Available with Neoprene, EPDM, Hyplon, Butyl, Viton, Viton, Teflon-Coated and pure PTFE Diaphragms. Available in Screwed end Connections also.

View More Details

Send Enquiry

Company Information

Nirmala Pumps & Equipments

Vatva, Ahmedabad, Gujarat

View Number

Member Since 19 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

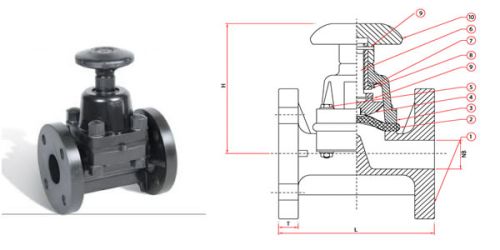

BILL OF MATERIAL

NO	PART	M.O.C
1	Body	PP/PPH/PVDF/A PP/A HD
2	Diaphragm	EPDM/NEOPRENE/VITON/Teflon Coated/Hyplon
3	Bonnet	PP/PPH/PVDF/A PP/A HD
4	Compressor	Alluminium /CI
5	Bolt,Nut,Washer	MS/SS304/SS316
6	Stem	MS/SS304/SS316
7	Nut	MS/SS304/SS316
8	Washer	MS/SS304/SS316
9	Pin	MS/SS304/SS316
10	Hand Wheel	PP/C
