Didactique Vocational Educational Equipment

We are offering didactique vocational educational equipment training equipos wind and solar power training system.

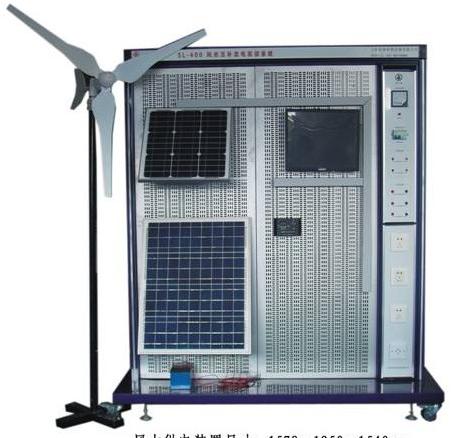

Dl-fg01 wind and solar power training system
i. Overview
wind and solar power generation training system consists of photovoltaic power supply system, solar power systems, wind power equipment, wind power system, the inverter and the load system, monitoring system. Wind and solar power training system uses modular structure, the devices and systems with separate functions, can be combined into photovoltaic training systems, wind power training system.
Ii. The main experimental training content
1), off-grid wind and solar power system planning;
2), according to the power requirements of the photovoltaic cell component selection, installation and connection;
3), according to the power requirements, wind turbine selection, installation and connection;
4), mcu-based photovoltaic modules mppt program design;
5), mcu-based wind generator maximum power tracking of program design;
6), battery capacity matching calculation and selection;
7), battery charge and discharge parameters, the protection parameter settings;
8), the inverter parameters;
9), the monitoring system configuration and operation;
10), photovoltaic power supply system debugging;
11), the wind power system debugging;
12), wind and solar power generation system debugging;
13), power quality monitoring, debugging and analysis.
Â�¢technical parameter
wind-powered device size:1578*1950*1540mm
training cabinet size:1450*300*1780mm
