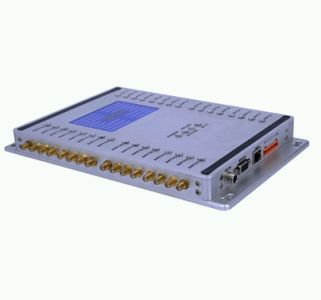

UHF RFID 32 Port Channel Reader

MaterialDie-cast aluminium
Frequency860-960MHz
InterfaceRS232
Size26.5x25.0x4.5CM
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location Anywhere in India

Features : High speed reading and high sensitivity Support multi work modes (auto, command, triggering); Could connect 32 external antenna Multiple tags reading ability Support DEMO and SDK,....

View More Details

Send Enquiry

Product Details

Features :

High speed reading and high sensitivity
Support multi work modes (auto, command, triggering);
Could connect 32 external antenna
Multiple tags reading ability
Support DEMO and SDK, support secondary development

Application :

Vehicle management - monitoring and managing autos and containers;
Customs management - great speed up the customs’ process;
Logistics management - parcels and whale house management;
Access control - including car access and personal access;
Production line management - monitoring products from end to end;
Asset management - dramatically improved the security level;
Aero tunnels management.

Technical Specification

Working Frequency	902~928 MHz or 865~868MHz
Protocol	ISO18000-6C(EPC C1 GEN2)
Chip	Impinj R2000
RF power	0~30dBm(Adjustable)
Software & SDK	DEMO and C#, VC, Java
Communication port	RS232,TCP/IP,WIFI
Industrial lightning protection	6000V
Reading range	With 12dBi antenna, stable reading range 30M(Depends on tag & environment)
Tag handling volume	0-200 tags
Storage space	1M or 8M Flash save without power supply(customized)
Real-time clock	without power supply, real-time clock save and working(customized)
Frequency modulation	hopping or fixed frequency
Input/output port	Two-way relay output, one-way I/O input
RSSI	RSSI numerical test
Physical parameters:
RF connector	32 SMA outer female connector
Power	12V/3A Adaptor
Ethernet power supply	POE(customized)
Working temperature	-20â+65
Storage temperature	-45+95
Item size	240x180x30mm
Package size	410x270x110mm
Net weight	2KG
