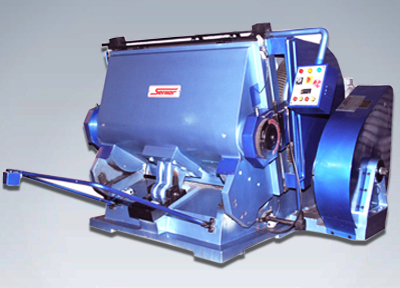

Die Punching Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

- Impression Adjustment through two capricious shrubs - Electro Magnetic Clutch and Brake to dispense with plausibility of time slack between driving and breaking - Dual Timing Device to give a variable period from half to ten seconds - Two Safety Devices to stop the moving square instantly and segregate the beginning component - Standard Accessories: One Impression Plate, Two Steel Chases, Feed and conveyance sheets, Centralized oil framework and apparatuses.

View More Details

Send Enquiry

Company Information

Senior Packaging Machinery Mfg. Co.

G.T. Road, Amritsar, Punjab

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Specifications

Size	20”x26”	20”x30”	25”x37”	32”x42”	36”x50”	42”x62”	56”x76”
Plates Size	23”x29”	23”x33”	28”x40”	35”x45”	39”x53”	45”x65”	59”x79”
Impression Per Hour	2000	2000	1800	1500	1200	700	600
Power Required (H.P.)	3	3	5	7.5	7.5	15	15
Floor Space	60”x45”	60”x51”	65”x55”	78”x78”	85”x80”	100”x88”	115”x90”
Gross Weight (Kgs)	2700	3000	4000	5500	6500	9500	10200
