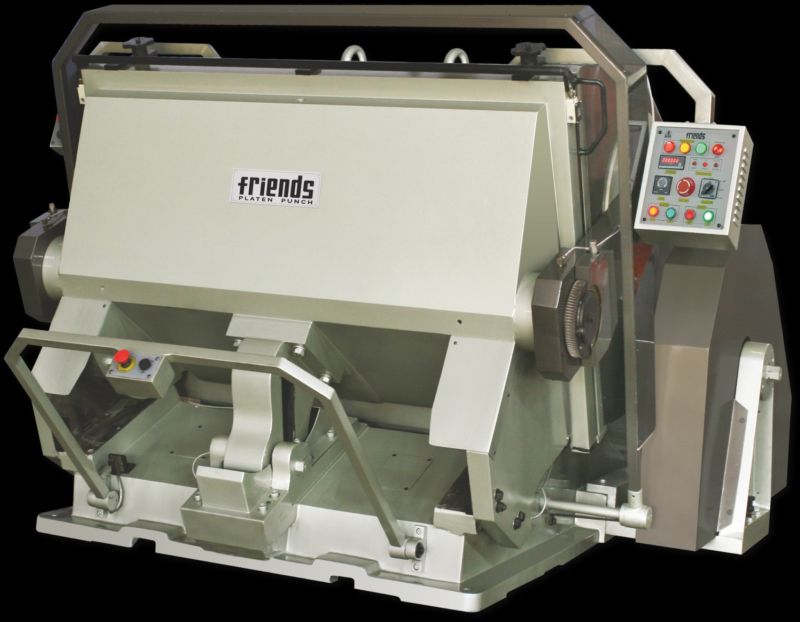

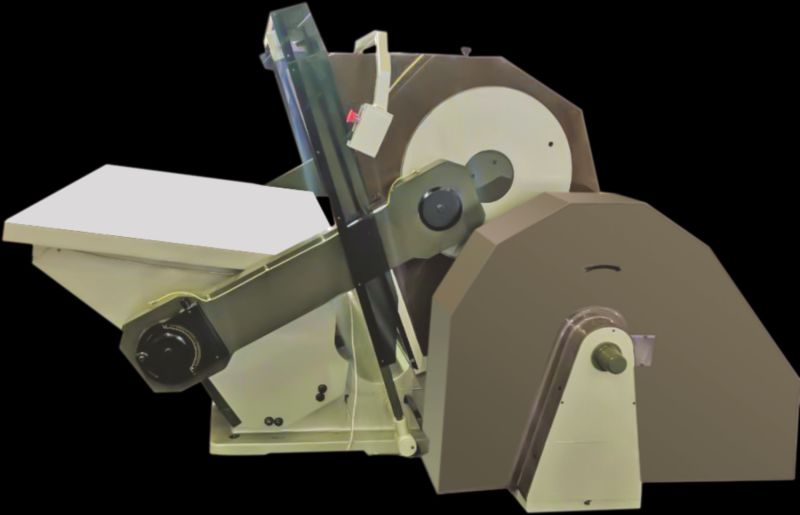

We design our premium Friends complete heavy duty die punching machine with an electro-magnetic clutch and brake for performing all simple and straightforward operations. This Die Punching Machine is capable and designed basically for performing Die-Cutting, Creasing, Punching, and Embossing Job on various merchandise like Paper, Cardboard, Fibre Board, Vinyl, Foam, Rubber, Leather, Masonite, Cork Sheets, affixed Boxes, Advertising Cut out, Jigsaw Puzzles, Labels, and far more.
The multi-functional system provides exceptional output as desired via the client within step with die used within the machine. All below-noted functions permit us to provide a hundred% efficient, correct results. In addition to this, the Platen Die Punching machine that we offer consists of a set of enterprise standards. Our valued customers can obtain the Platen "Die Punching Machine India" from method folks in a variety of sizes based on their requirements.
Features
Die Punching Machine Features and Uses
Completely standardised where all elements can be interchangeable.
All shafts are made of EN Grade metal, the pins are grounded, and the trees are made of Phosphorus Bronze Alloy.
All bearings are of the highest quality from SKF/NBC/NACHI.
Machine with fail-safe combination clutch brakes and adjustable machine.
The main driving shaft is equipped with double helical self-lubricated imported polyamide/metal pinion units.
The main electric powered panel that includes all operation and management functions, is outfitted with a Detachable Socket System and international standardised additives such as Siemens/L&T/Schneider (France) and so on.
Software for self-diagnosis with visual indicators.
The main flywheel is secured with a check-nut machine, and a fully automatic centralised lubrication system is provided.
A fully automatic centralised lubrication system is provided.
| Model | Friends - 28 | Friends - 35 | Friends - 40 | Friends - 43 | Friends - 46 | Friends - 54 | Friends - 57 | Friends - 66 | Friends - 68 | Friends - 76 | Friends - 85 | Friends - 95 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Platen Size (in) | 22×28 | 25×35 | 28×40 | 32×43 | 36×46 | 40×54 | 43x57 | 46×66 | 48x68 | 56×76 | 55×85 | 55×95 |
| Inside Chase (in) | 20×26 | 22×32 | 25×37 | 29×40 | 33×43 | 37×51 | 40x54 | 43×63 | 45x65 | 53×73 | 52×82 | 52×92 |
| Platen Size (cm) | 56×71 | 63×88 | 71×101 | 81×109 | 91×116 | 101.6×137 | 109x145 | 116×167 | 122x173 | 142×193 | 140×216 | 140×241 |
| Inside Chase (cm) | 51×66 | 56×81 | 64×94 | 73×101.5 | 83×109 | 94×130 | 102x137 | 109×160 | 114x165 | 134×185 | 132×208 | 132×233 |
| H.P. Reqd. | 3 | 3 | 5 | 5 | 7.5 | 7.5 | 10 | 10 | 15 | 15 | 15 | 20 |
| Impr/hr | 1800 | 1700 | 1500 | 1400 | 1300 | 1100 | 1000 | 950 | 900 | 800 | 750 | 700 |
| Wt. approx. (Tons) | 2.75 | 3.75 | 4.25 | 4.75 | 5.5 | 6.5 | 7.5 | 9.5 | 10.5 | 13.5 | 15.5 | 18 |
| Area reqd. (cm) | 188×150×157 | 188×167×147 | 198×188×152 | 196×188×160 | 233×198×167 | 228x208x180 | 235×223×195 | 241×241×203 | 245x245x207 | 267×267×218 | 267×292×218 | 267×317×278 |
| Area reqd. (in) | 74×59×62 | 74×66×58 | 78×74×60 | 77×74×63 | 92×78×66 | 90×82×71 | 93×88×77 | 95×95×80 | 97x102x88 | 105×105×86 | 105×115×86 | 105×125×110 |
