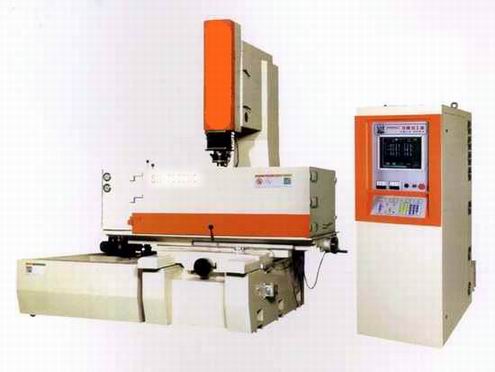

Die Sinker Electrical Discharge Machine, Brand Name : TOPWEDM

We are offering Znc Die Sinker Electrical Discharge Machine.
Specifications of znc edm sinking machine
model:znc-750
the movement of axes
1.longitudinal travel of worktable x -axis 750 mm
2.cross travel of worktable y-axis 600 mm
3.ram servo travel z1-axis 300 mm
4.work head elevating travel z2-axis 350 mm
worktable
1.maximum load 2500 kg
2.dimension of worktable 650*1100mm
3.out size of work tank 2000*1100*600 mm
oil tank
1.out size of oil tank 2200*1250*600 mm
2.capacity of oil tank 1250 litres
other parameters
1.maximum distance from the work head to the surface of worktable 950 mm
2.maximum weight of electrode 250 kg
3.gross weight of complete machine 3500 kg
standard accessaries
oil filtering net 2 pcs
tool kit 1 set
drill chuck 1 pcs
fire extinguisher 1 pcs
working clamping device 1 groups
hex keys 1 set
quartz working lamp 1 pcs
magnetic base of oil-jet 1 pcs.
