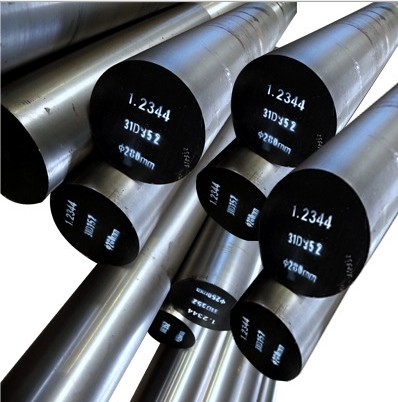

Die Steel H13 Mold Steel

H13, 1.2344, skd61, 4cr5mosiv1 (hot work die steel)
size available:
plate bar: thickness 40-350mm
width 100m-1000mm
length 2m—6m
round bar: dia. 80---600mm
listing description
1. Eaf-lf-vd-esr forged
2. Iso 9001 certificated
3. Factory direct sales steady supply
4. Higher resistance to heat checking
detailed description
principal design features
the steel has high hardenability and thermal cracking capacity, good wear resistance, with good heat resistance, in higher temperatures has good strength and hardness, high wear resistance.
applications
the steel is widely used to manufacture hot extrusion dies and mandrels, forging die forging hammer die forging presses, forging machines, mold inserts and alloy die-casting mold.
steel grade: h131.2344 4cr5mosiv1 skd61
specification: flats 40-350x100-1000mm.
delivery condition: eaf+lf+vd+(esr),forged, annealed, ut tested, peeled or machined.
chemical composition（gb）: c:0.32-0.45 mn:0.2-0.5 si:0.9-1.2 cr:4.8-5.50 mo:1.20-1.50 v:0.9-1.1
tolerance: 0+2mm
ut grade: sep1921,group3, class dd
payment item: tt,lc
equivalent grades:
gb：4cr5mosiv1
din：1.2344
aisi：h13
jis：skd61
bs：bh13
assab：8407
quality assurance:
we are the iso 9001:2000 authentication enterprises and we can provide the enterprise's quality written guarantee for all the exported products.
shaping: hot forged hot rolled
surface condition: black surface turning milling peeling polishing.
weight(kg): round bar=0.00617*r*r*l
flat bar=0.00785*t*w*l.
