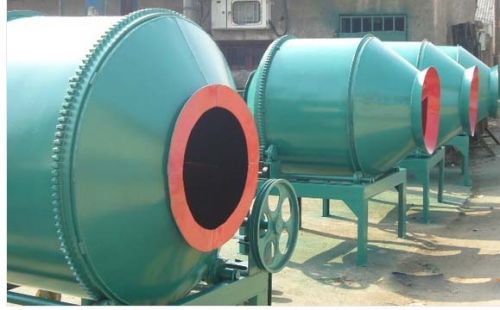

Diesel Concrete Mixer, Packaging Type : green, yellow

We are offering diesel concrete mixer is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
diesel concrete mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, it is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
features concrete mixer:
1. All-steel construction, concrete mixer has long life span.
2. Large wheels, it's easy to move the concrete mixer to anywhere.
3. Diesel concrete mixer is energy saving and environment friendly.
4. Cast iron gear diesel concrete mixer steady and silent working.
5. Painted surface, diesel concrete mixer is rust- proof.
model jz250
discharging capacity 350l
loading capacity 560l
productivity 10-14 m3h
thickness of mixing drum 6mm
rated power of diesel engine 5.5kw
power of water pump 0.55kw
accuracy of water supply error≤2 percent
maximum size of aggregate 60mm
max trailing speed 20 kmh
tyre size 6.50-16
speed of mixing drum 14 rpm
overall dimension (l×w×h) 2765*2140*3000mm
overall weight 1000kg
