Diesel Engine Wood Chipper, Brand Name : YJF, Certification : CE

₹ 1.90 Lakh / 3400 3400 Piece

MOQ1 Piece(s)
Brand NameYJF
CertificationCE
ConditionNew
Power50/40/22hp
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2009

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flowerwood chipper
Brand NameYJF
Applicationwood chipper
CertificationCE
ConditionNew
After-Sales Service Providedoverseas third-party support available
Power50/40/22hp
Country of OriginShandong,China
the max chipper diameter8 inch
Powered diesel engine 40HPAuto hydraulic infeeding
working efficiency9-11CBM/H
Model NumberWS-40
NameDiesel Engine Wood Chipper
feeding systemhydraulic

The Diesel Engine Wood Chipper has 3 blades and 8-inch wood chipper and is powered by diesel. The double hydraulic motor and the safety and quality approval from renowned authorities make it safe to use and is highly demanded as well. Only premium quality components are used in manufacturing the product which is in adherence to international quality standards. We assure our customers timely and prompt delivery at affordable rates.

Quick Details :

Condition - New
Type - Wood Chipper
Use - Wood Chop
Power Type - Diesel
Production Capacity - 9-13 m³/h
Place of Origin - Shandong, China (Mainland)
Brand Name - FRD
Model Number - WS-40
Dimension(L*W*H) - 1700 L x 1550 W x 1400 H
Weight - 780 kg
Certification - CE certificate
Warranty - 1year
After-sales Service Provided - Overseas third-party support available
wood chipper colour - Yellow, red, blue, or any colour
Engine - Electric diesel Engine / 4 Cylinder
Chipper model - WS-40hp
Infeeding system - Auto hydraulic infeeding roller
Hydraulic motor NO - double hydraulic motor
Wood chipping machine condition - new
Working efficiency - 9-13 CBM/H
The max chipper diameter - 8 inch
Certificate - CE/EPA
Weight - 780 kgs

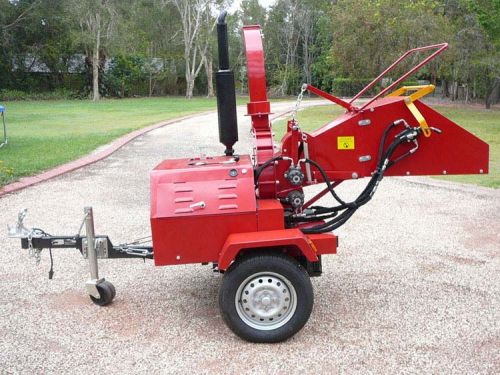

Wood chipper machine with hydraulic feeding
Trailer Mounted Wood chipper, double hydraulic infeeding roller , double hydraulic motor , control valve
3 Blade, 8" wood chipper
CE certificate
Safety guard

Technical Specifications

Engine type	DWC-50(50hp)	DWC-40(40hp)	DWC-22(22hp)
Engine type	Vertical 4-cylinder,4 stroke diesel engine		Level type single cylinder ,stroke diesel engine
Engine model	495	490	1115
Engine power	36.8KW	29.4KW	14.7KW
Cooling method	Water circulation	Water circulation	Water circulation
Rated engine rev	2200rpm	2200rpm	2200rpm
Diameter of chipper disc	600mm	600mm	600mm
Max Dia of Feeding	8’’ (20cm)	8’’ (20cm)	8’’ (20cm)
Chipper disc rev	1025mm	1025mm	1025mm
Feeding system	Hydraulic feedding, adjustable speed, stop-reverse-forward function
Number of blades	2pcs
Chip size	Thickness~4mm	Thickness~4mm	Thickness~4mm
Discharge chute rotate size	360 degree	360 degree	360 degree
Weight	850kgs	800kgs	650kgs
Working efficiency	8-12m³/H	8-12m³/H	8-12m³/H
Volume of hydraulic oil tank	38L	38L	38L
*Packing size (WDH)mm*	180011001250	180011001250	135011001250
