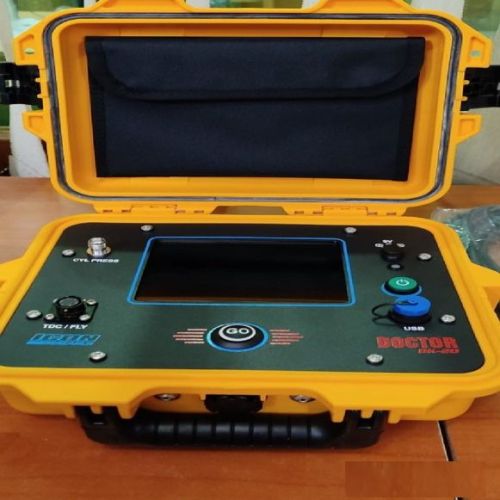

Diesel Engines Performance Analyzer

As one of the leading entities of this domain, we are engrossed in providing supreme quality DK-20 Marine Diesel Engine Analyzer. This system is equipped with a diesel detector. It is made compatible with various software packages available with an integrated PC for mobile usage. The offered system is manufactured by our ingenious professionals using the finest quality aluminum with the aid of pioneering techniques at our vendor’s end. Also, this system is extensively demanded for use in several industrial operations.

Features:

• High durability
• Weather resistance
• Easy to operate

Specifications:

•  DK-20: Single-channel compact portable system for full cylinder pressure analysis and automatic diagnostic
• DK-20/FV: Dual simultaneous channel compact portable system for cylinder pressure plus fuel pressure analysis and automatic diagnostic
• DK-100: Multichannel portable system for simultaneous data collection and real-time analysis, diagnostic, and observation of corrective actions
• DK-200: On-line systems provide continuous monitoring of engines up to 30 cylinders
• Up to eight engines can be monitored on one vessel and linked to an onboard PC running the online software

Application:

• This equipment can provide exact health details of the engine
• Faults, if any, including non-synchronous behavior of the cylinders, will also be indicated
•  Details of power developed by each cylinder and also by all the cylinders together are calculated and displayed
•  The unit is portable and can be taken to any location or ship to carry out the realistic assessment of engine health in the field whenever doubt arises about the same
•  Many more as explained in the literature attached

Benefits:

•  Saves fuel
•  Minimizes harmful SOx and NOx emissions
• Cuts downtime
•  Pinpoints problems that are starting to develop
•  Provides detailed and accurate information on engine health
• Optimizes engine efficiency
•  Advantageous for old vessels using obsolete offline engine monitoring technology
• Designed for real marine users
• Comprehensive analysis, trending, and reporting software
• Proven reliability, accuracy, ease of use, and durability — more than 9,000 units in use

 The software enables fleet-wide engine comparisons to be carried out at the click of a button. Features such as shop & sea trial comparisons, standard or customized engine reports, and the comprehensive analysis features for which the Doctor software is renowned have combined to make it the first choice for thousands of diesel engine operators.

 The software can be downloaded or provided on a USB key along with a guide to enable the operator to quickly familiarize himself with the application. The intuitive nature of the functions makes the learning process even easier.

 The software is supplied with a suite of sample engine measurements to experiment with.

 There is no restriction on the number of computers that the software can be used on, so engine measurements can be freely passed between operators, analysts, and managers.Any standard desktop or laptop PC with Windows™ 7 or 10 can be used.
