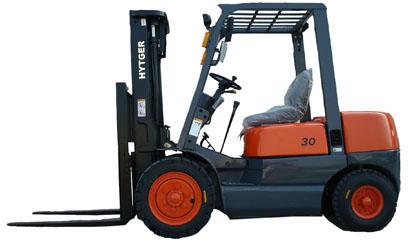

Diesel forklift

General 1 Model FD20T/C FD25T/C
2 Power Type Diesel Diesel
3 Rated Capacity kg 2000 2500
4 Load Centre mm 500 500
Characteristic&Dimension 5 Lift Height mm 3000 3000
6 Fork Size L×W×T mm 1070×122×40 1070×122×40
7 Mast Tilt Angle F/R Deg 6°/12° 6°/12°
8 Front Overhang (Wheel center to fork face) mm 450 450
9 Ground Clearance (Bottom of mast) mm 110 110
10 Overall Dimension Length to face of fork (Without fork) mm 2460 2530
11 Overall Width mm 1150 1150
12 Mast Lowered Height mm 1995 1995
13 Mast Extended Height (With backrest) mm 4030 4030
14 Overhead Guard Height mm 2120 2120
15 Turning Radius (Outside) mm 2170 2240
Performance 16 Speed Travel (Full load) km/h 17 17
17 Lifting (Full load) mm/s 550 550
18 Max. Gradeability % 27/21 23/18
Chassis 19 Tire Front 7.00-12-12PR 7.00-12-12PR
20 Rear 6.00-9-10PR 6.00-9-10PR
21 Wheelbase mm 1600 1600
22 Service Weight kg 3330 3670
Power&Transmission 23 Battery Voltage/Capacity V/Ah 12/80 12/80
24 Engine Model C240
25 Manufacture ISUZU
26 Rated Output kw/rpm 52/2500(38.3/2500) 110/2500
27 Rated Torque N·m/rpm 15.7/1800(15.4/1800) 36/1650
28 No. of Cylinder 4
29 Bore×Stroke mm 86×102
30 Displacement cc 2369
31 Fuel Tank Capacity L 70
32 The Alternatives of Engine XINCHAI A490BPG
33 Transmission Type T means Torque Converter, C means Clutch
34 Stage FWD/RVS 1/1(2/2)
