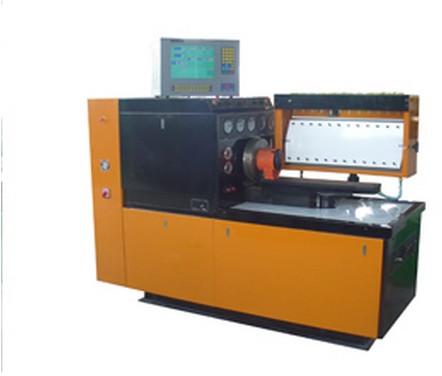

Diesel Fuel Injection Pump Test Bench, Brand Name : YUEXIN

we are offering diesel fuel injection pump test bench. introduction
nts619 is a kind of fuel injection pump test bench adopt industrial pc with color crt, it's the newly researched production for the direction of high power and safety to the environment. it has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. it easy and quick operates ,it's really human-machine dialog. this series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, it is advanced products.
main function
1. measurement of each cylinder delivery at any speed.
2. test point and interval angle of oil supply of injection pump.
3. checking and adjust the mechanical governor.
4. checking and adjusting the distributor pump.
5. .experiment and adjusting of behavior of supercharging and compensatory device.
6. measurement of oil return of distributing pump
7. testing of the electromagnetic valve of distributor pump.(12v/24v)
8. measurement of the internal pressure of distributor pump.
9. checking of the advance angle of advance device.(on request)
10. checking the sealing of injection pump body
11. install tube of auto-sucking oil supply can check on oil supply pump(including ve pump.)
12. checking the travel of stroke
13.oil lubricate(on request)
14.cast iron base(on request)
15. foced cooller(on request)
technical characteristic
adjustable cylinders numbers
out power(kw)
rpm
rpm pre-set
temperature control system
positive pressure system
positive pressure system
12
5.5
7.5
11
15
18.5
0-4000
�
�
�
�
air supply
dc power supply
internal pressure of ve pump
oil return of ve pump
travel of tooth bar
advanced angle
capability with pump type
�
�
�
�
�
(on request)
�
(on request)
all in- line and rotary pump
