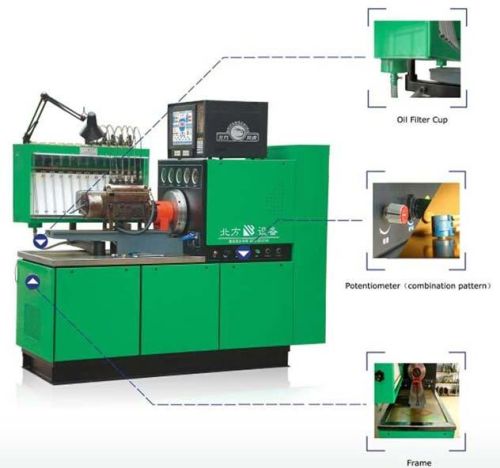

Diesel Fuel Injection Pump Test Benches (12PSB-BFB)

We are a well-known supplier and manufacturer of Diesel Fuel Injection Pump Test Benches (12PSB-BFB) based in Shandong Province, China. The machine which is used to test mechanical pumps is our bestselling model. It has both CRT screen display and LED digital display control systems. It is controlled by a multi-lingual industrial computer. The unit has a short circuit protection feature. The engine frequency conversion has two modes of operation, automatic and manual. The product has a one year warranty.

Features

• Controlled by industrial computer
• Three system languages - Chinese, English and Russian (other languages can choose as customer's requirements)
• Main engine frequency conversion, manual and automatic two operating modes
• Automatic mode can process multi-gears speed preset
• Automatic oil measuring and counting system
• Has short-circuit protection feature
• Two sets of air supply adjustment knobs on both sides,easy operation
• Automatic oil measuring plate (optional install)


Functions

• Test each cylinder's oil supply quantity under different rotate speed.
• Check each cylinder's injection timing under static state
• Check the performance of mechanical governor
• Test the electromagnetic valve of distributor pump
• Test the tightness of injection pump
• Measure the pump body internal pressure and oil return pressure of distributor pump
• Check the performance of pressure equalizer, pneumatic governor
• Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing

Applications

• Vehicles - Automobiles, tractors, agriculture machines, dynamos, engineering machinery
• Scientific research of teaching
• National defense

Packaging and delivery

• Packaging  - wooden case with water-proof membrane
• Delivery - within 15 days after receiving the deposit

FAQ

• MOQ - 1 set
• Warranty - 1 year
• Trade terms - FOB CIF CFR EXW
• Payment terms  - T/T, Western Union, Paypal
