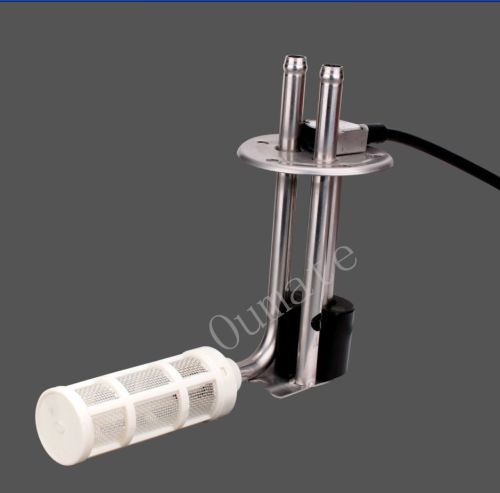

Diesel Fuel Level Sensor For Oil Tank

We offers diesel fuel level sensor for oil tank.
*application:
mainly used in light truck, bus, boat and construction equipment for level detecting, fuel suction and return.
*material:
the main body is made of stainless steel
*fitting:
the fitting of suction, return pipe have several kinds for choice, such as bulge fitting, thread fitting and sae fitting. The fittings are parallel in the horizontal direction.
*length range: 120-900mm
*fixation:
normally, we use the bayonet, standard 5 holes or stand 6 holes for fixation .also the fixation way can be customized.
*wire:
pvc material (pa corrugated pipe cover is optional)
*connector:
brand delphi, tyco, others is available according to customer’s requirement.
*output signal:
resistance control signal: 0-190ω,240-33ω, or customized as required ;
you can also chose current control signal : 0-20ma ,4-20ma,
or voltage control signal:0.5-4.5vdc,0-5vdc
*rated power: 125mw
*rated current for alarm switch: 500ma
*precision range: 10-40mm
*operating temperature:-40-±80
*protection range: ip67.
