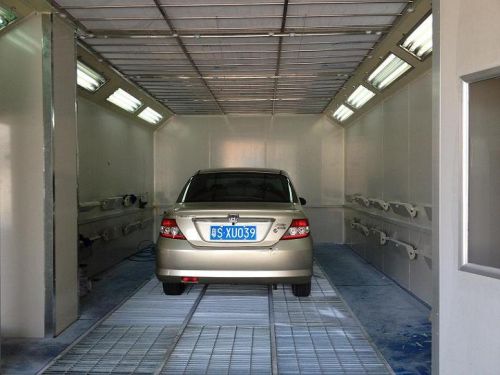

Diesel Fuel Spray Booth

We are offering diesel fuel spray booth.xin guang li qx1000 diesel fuel spray booth configuration table
1 exterior size 7000x5500x3300(mm)(l*w*h) interior size 6900*3900*2650(mm)(l*w*h)
2 entrance door three doors with 1.8mm aluminum alloy wrap-around . Door size:1000*2600mm(w*h). Color free choice.
3 working door one door(size:700*1700mm(w*h), the door's color is the same as the wall.
4 wall 50mm eps (epispastics polystyrene ) with 0.426mm colored steel
5 lighting up side 45° degree equipped with 8 groups of appropriable lamp boxes ,each group has three 40w philips lamp.
6 cabinet device intake air from upside, exhaust wind from downside. It can set according to the present situation .tube frame size:50*50mm. Cabinet is made of galvanized plate(thickness is 0.8mm)
7 exhaust machine 2 centrifugal fans. Total parameter: yow5.6m.4kw.25000m³/h
8 heating system (1set) with 1 set riello rg5s (italy origin) fuel burner.1 set stainless steel heat exchanger,maximum heat output 520000kcal / h,fuel consumption :6-7kg one set one time. Temperature : 50 centigrade to 60 centigrade.
9 filtration system room equipped with cc-g650 high-efficiency filtering device,which can effectively filter 5pm dust particles.air inlet has item 300 primary cotton filter . Roof is made of light steel.
10 roof roof is made of galvanized sheet. Roof construction is consist of six square tubes (each tube size:40*80)
11 electronic control system including painting , baking, temperature controller, fault led, power switch, emergency stop switch, and hour meter
12 voltage frequency 380v,50hz
13 air flow speed more than or equal to 0.25m/s
14 light intensity more than or equal to 1000lxs
15 total power 9kw
16 outlet air pipe the wind pipe is made of galvanized plate(thickness is 0.8mm) with stiffener. Three straight pipes(each pipe size:700*700*1000), one bend pipe
17 platform galvanized grille. The column is made of u-steel which is convex shape.checkered plate use high anti-rust treatment . Two ramps(2000*530(w*h)mm/each)
18 price 6476$
