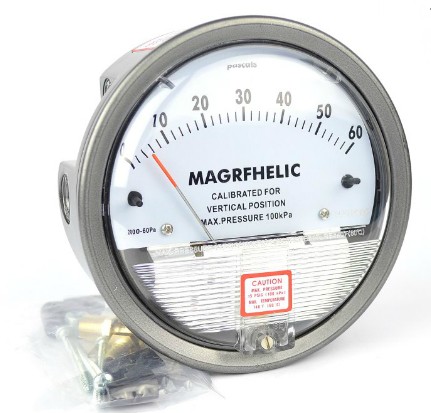

Differential Pressure Gauges

The specification of differential pressure gauge :
2000 series differential pressure gauge minimum range 0-30pa, maximum range 0-30kpa. There are as many as 88 kinds of range and metric imperial units to choose from.
this differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.
technical data of differential pressure gauge :
1 medium: air and non-combustible, compatible gases (optional gas)
2 housing: cast aluminum housing or abs shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
3 accuracy: 2% fs (mm units, and the range with the corresponding pa)
4 pressure range:. -20hg to 15 psig (-0.677 bar to 1.034 bar)
5 temperature range: 20 to 140 â° f (-6.67 to 60 â° c)
6 hole size: 114mm
7 mounting orientation: diaphragm in vertical
8 connections: same 18 "npt high and low pressure fittings, one pair on the side, one pair in the back
9 weight: 500g only
10 standard accessories: two 18 "npt threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 18" npt plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace mp and count on attachments hp)
