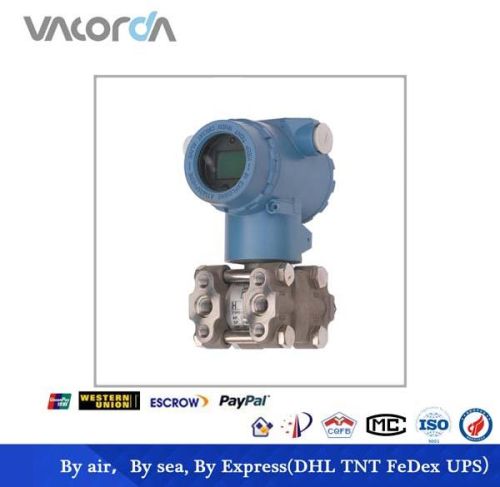

Differential Pressure Transmitter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Differential Pressure Transmitters are widely used to measure differential pressure at very high static pressures. Our company is a reliable Manufacturer and Supplier of Differential Pressure Transmitter in China. These Differential Pressure Transmitters have high accuracy and long functional life. Customers can purchase the Differential Pressure Transmitter at competitive rates.

View More Details

Send Enquiry

Specifications

Measuring range	50Pa-10MPa
Accuracy	1. Digital Signal: ± 0.05 ;2. Analog signal: ± 0.075, ± 0.2, ± 0.5 3. Micro range (≤ 1.5kPa): ± 0.2
Output signal	4-20mADC
Load Resistance	0-600Ω (24VDC power)
Transmitting	> 1000m
Stability	± 0.2% FS / Year ( t = 28 ^oC, the maximum static pressure 6.9 MPa, range 1:1 condition)
Zero and range	External continuously adjustable
Positive transfer	500%
Negative transfer	600%
Static pressure effect	1. Zero Error (can eliminate the static pressure) Pressure from 0-13.7 MPa, ± 0.2% / 6.9MPa Static pressure than 13.7MPa, ± 0.5% / 6.9MPa 2. Scale error: ± 0.25% / 6.9MPa
Environmental temperature / 28 ^oC	1. Turndown ratio 1:1-10:1 ≤ ± 0.2% 2. Trace process (≤ 1.5kPa): ≤ ± 0.5%
Power influence	<0.005% / V
Vibration Impact	arbitrary axis on the 15-2000Hz test <0.1% FS
Location of installation	a maximum of 250Pa zero may be amended, no range effect
RF interference	20-1000MHz, 1 under the conditions of meters, ± 0.1% FS
Dielectric strength and reverse protection	terminal and the shell, 50Hz, 100Vpp lasted for one minute
